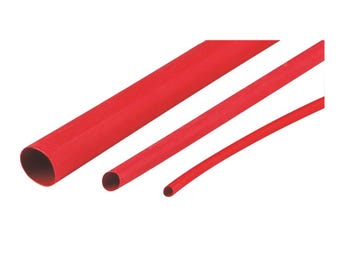

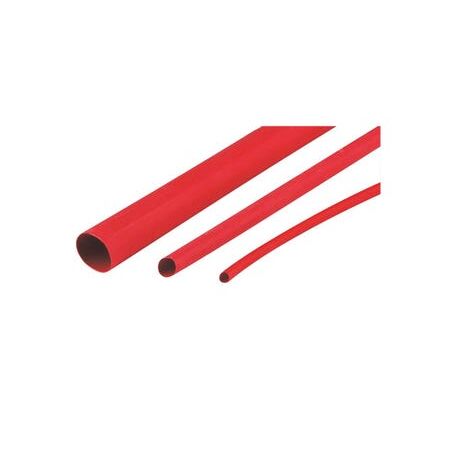

Heatshrink Thin Wall 2.4MM | Flame Retardant & Flexible | Red by Cabac
Heatshrink thin wall tubing with 2.4MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and resistance to abrasion, fluids, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2.4MM Red
Brand: Cabac
SKU: XLP2.5RD
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink, Electrical Insulation Tubing, Flame Retardant Heatshrink, Red Heatshrink Sleeve
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250 °C for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- UV stabilised except clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat shrinking tools such as a CABAC heat gun (Part No. HG2232 or HG2233) to ensure proper insulation and protection.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UV stabilisation extends product life reducing waste
- Durable material reduces need for frequent replacements
Warranty Information
Warranty information not specified; standard manufacturer warranty applies.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM Red is available for immediate purchase. Ideal for electrical insulation, protection, and colour coding in industrial and residential electrical applications.
