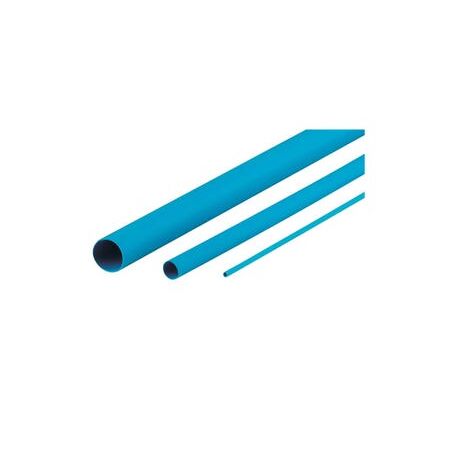

Heatshrink Thin Wall 25.4MM | Flame Retardant | Blue 1.2M by Cabac
Heatshrink tubing with 25.4mm pre-shrink diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with resistance to abrasion, UV radiation, and common fluids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 25.4MM Blue 1.2M
Brand: Cabac
SKU: XLP25BL/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Sleeve
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 25.4mm
- After-shrink diameter: 12.7mm
- Recovered wall thickness: 0.87mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 25mm x 1200mm x 25mm
- Weight: 0.1 kg
Key Features
- Flame retardant
- Flexible and resistant to impact, abrasion, and UV radiation
- Made from Electron Beam Cross Linked Polyolefin
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional using appropriate heat shrinking tools such as a CABAC heat gun (Part No. HG2232 or HG2233) to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 25.4MM Blue 1.2M is available now for immediate purchase. Ideal for electrical insulation, protection, and colour coding in residential, commercial, and industrial electrical applications.
