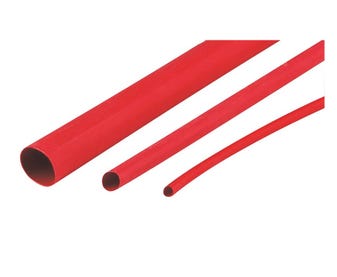

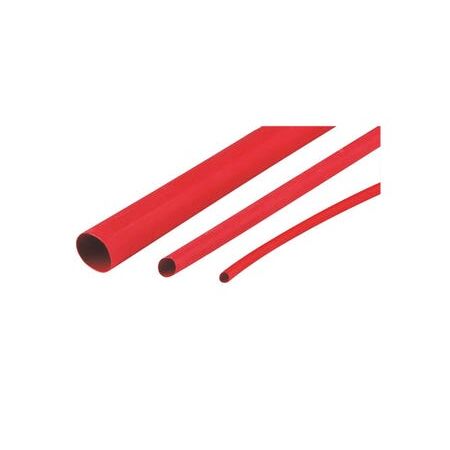

Heatshrink Thin Wall 25.4MM | Flame Retardant | UV Resistant | 5M Red by Cabac
Heatshrink thin wall tubing with 25.4mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for industrial and residential use, with UV resistance and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 25.4MM Red 5M Box
Brand: Cabac
SKU: XLP25RD-5M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve Red 25mm
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 25.4mm
- After-shrink diameter: 12.7mm
- Recovered wall thickness: 0.87mm
- Length: 5 meters
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 25mm x 5000mm x 25mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against common fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste and replacement frequency
- UV resistance extends product life, reducing environmental impact
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 25.4MM Red 5M Box is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
