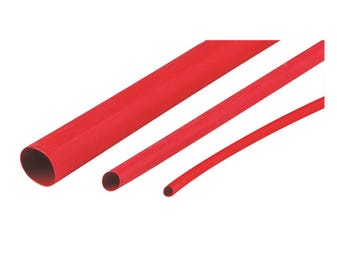

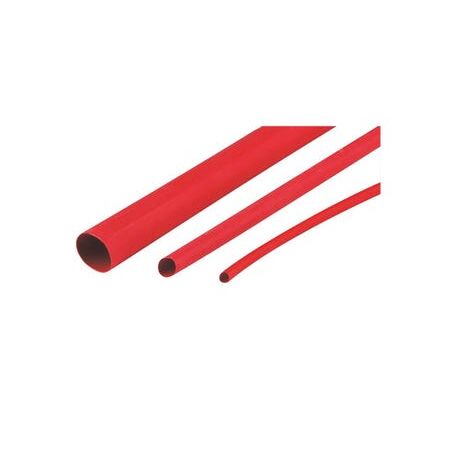

Heatshrink Tubing Thin Wall 3.2mm Flame-Retardant Red Cabac
Heatshrink thin wall tubing with 3.2MM diameter and flame retardant properties—ideal for electrical insulation and protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 13 mm x 200000 mm x 13 mm
- Weight: 0.5 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for optimal shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against common fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste and replacement frequency
- UV resistance extends product life, reducing environmental impact
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 3.2MM Red is available for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
