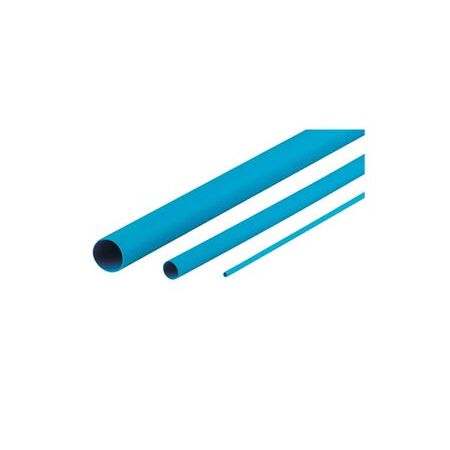

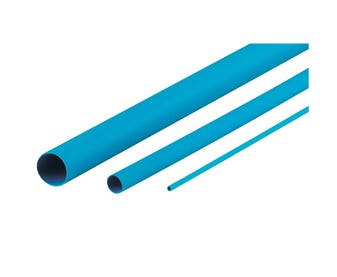

Heatshrink Thin Wall 38MM | Flame Retardant & Flexible | Blue 1.2M by Cabac
Heatshrink thin wall tubing with 38MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and resistance to abrasion, UV radiation, and common fluids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 38MM Blue 1.2M
Brand: Cabac
SKU: XLP38BL/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 38.1mm
- After-shrink diameter: 19.1mm
- Recovered wall thickness: 1mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 38mm x 1200mm x 38mm
- Weight: 0.1 kg
Key Features
- Flame retardant
- Flexible and resistant to impact, abrasion, and UV radiation
- Made from Electron Beam Cross Linked Polyolefin
- Shrinks to approximately 50% of pre-shrink diameter
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation requires heat application using a heat gun; professional installation recommended for electrical safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
Warranty Information
Warranty information not specified; typically covered by manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 38MM Blue 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
