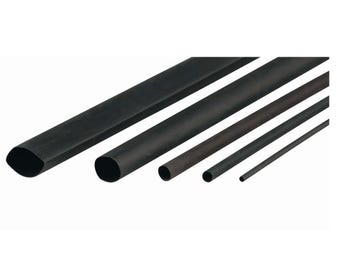

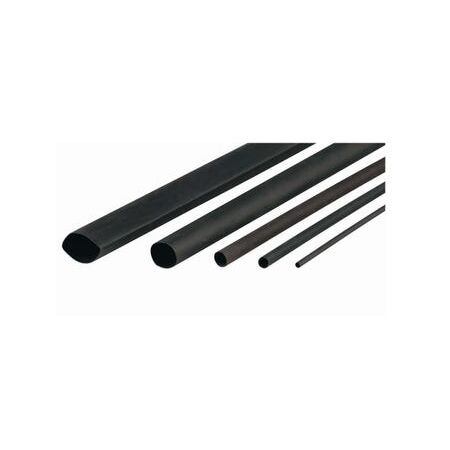

Heatshrink Thin Wall 4.8MM | Flame Retardant | UV Resistant | Black by Cabac
Heatshrink thin wall tubing with flame retardant and UV resistant properties—ideal for electrical insulation and protection. Built for durability, with flexible polyolefin material for mechanical and environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 4.8MM Black
Brand: Cabac
SKU: XLP5BK
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeving
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 100000mm x n/a mm
- Weight: 0.5 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and durable with high tensile strength
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation requires heat application using a suitable heat gun, preferably CABAC heat gun models HG2232 or HG2233, by a qualified technician to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Heatshrink Thin Wall 4.8MM Black is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
