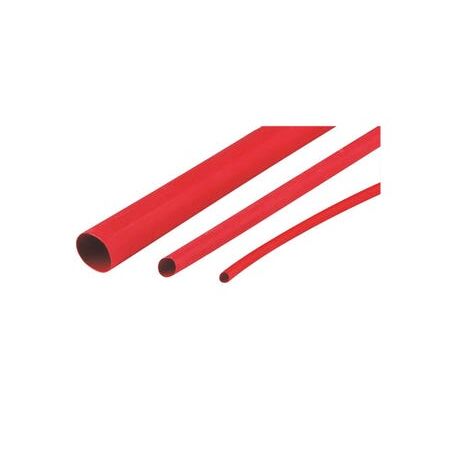

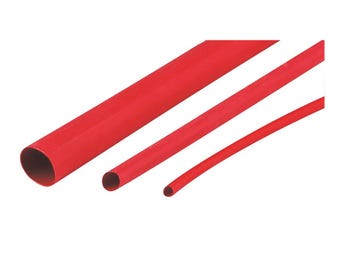

Heatshrink Thin Wall 50.8MM | Flame Retardant | UV Resistant | 1.2M Red by Cabac
Heatshrink thin wall tubing with 50.8mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 50.8MM Red 1.2M
Brand: Cabac
SKU: XLP51RD/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 50.8mm
- After-shrink diameter: 25.4mm
- Recovered wall thickness: 1.1mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 50.8mm x 1200mm x 50.8mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 50.8MM Red 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
