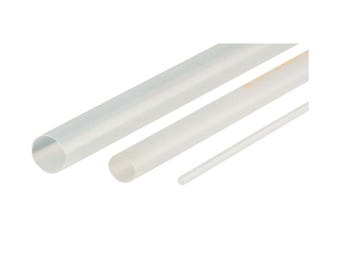

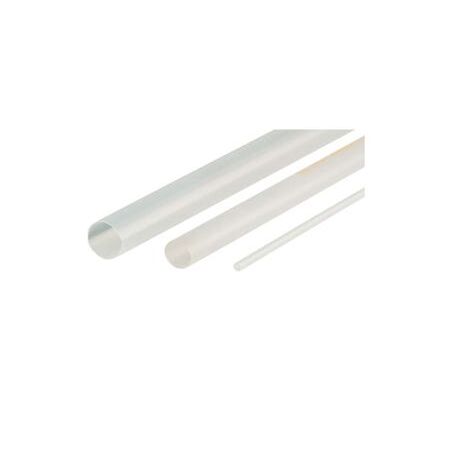

Heatshrink Thin Wall 76MM Clear | -75°C to +135°C | Highly Flexible & Flame Retardant by Cabac
Cabac Heatshrink Thin Wall 76MM Clear 25M Reel is a chemically cross-linked polyolefin tubing designed for electrical insulation, colour coding, and mechanical protection, operating between -75°C to +135°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 76MM Clear 25M Reel
Brand: Cabac
SKU: XLP76CL
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Electrical Heatshrink Sleeve, Polyolefin Heatshrink Tube, XLP Heatshrink
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised flame retardant polyolefin
- Continuous Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671 (Clear variant is flammable and conforms to MIL-1-23053/5 Class 2)
- UV Stability: All tubing is stable except clear variant
- Voltage Rating: 600V
- Compliant Standards: UL224 VW1 File No. E366157
- Conformant Standards: MIL-1-23053/5; JIS
- Dimensions (H x L x W): 76mm x 25000mm x 76mm
- Weight: 0.5 kg
Key Features
- Highly flexible
- Flame retardant (except clear variant)
- Abrasion and impact resistant
- Suitable for all electrical and electronic applications
- Available in a full range of diameters from 1.5mm to 125mm with 2:1 shrink ratio
- Available on reels or 4ft (1.2m) lengths
- UV stabilised range except clear variant
Professional Installation Requirements
- Professional installation is recommended to ensure proper shrinking and secure insulation, typically using a heat gun or heat tunnel.
Applications
- Electrical insulation and protection
- Colour coding of wires and cables
- Mechanical protection in electrical and electronic applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and abrasion resistant, reducing the need for frequent replacements
- UV stabilised (except clear) to extend product life in outdoor applications
- Chemically cross-linked for enhanced thermal stability, reducing material degradation
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Heatshrink Thin Wall 76MM Clear 25M Reel is available now for immediate purchase. Ideal for electrical insulation, protection, and colour coding in industrial and commercial applications.
