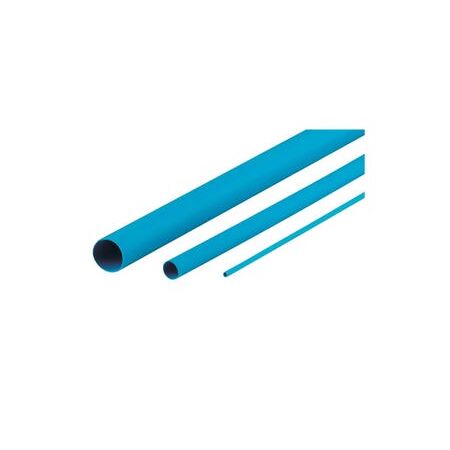

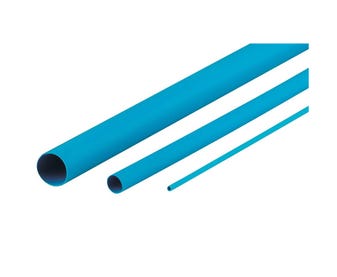

Heatshrink Thin Wall 9.5MM | 1.2M Length | Blue | Flame Retardant by Cabac
Heatshrink thin wall tubing with 9.5mm diameter and 1.2m length—ideal for electrical insulation and protection. Built for durability, with flame retardant and UV resistant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 9.5MM Blue 1.2M
Brand: Cabac
SKU: XLP10BL/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 9.5mm
- After-shrink diameter: 4.8mm
- Recovered wall thickness: 0.62mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250 °C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation recommended using a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Provides protection against environmental damage, reducing electrical failures and associated waste
Warranty Information
Warranty information not specified; typically covered by standard manufacturer warranty.
Available Now
The Cabac Heatshrink Thin Wall 9.5MM Blue 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
