Trade Discount 17%

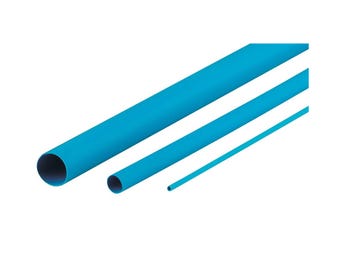

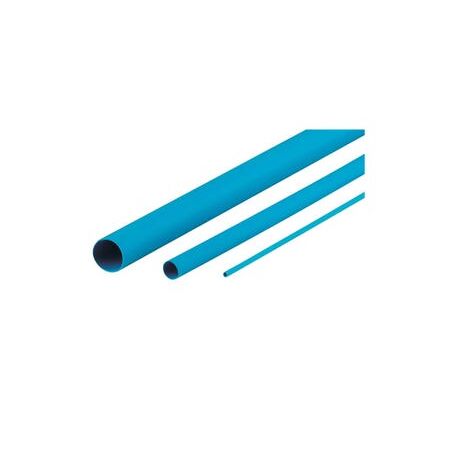

Heatshrink Thin Wall 9.5MM | 5M Length | Blue | Flame Retardant by Cabac
Heatshrink tubing with 9.5MM diameter and 5M length—ideal for electrical insulation and protection. Built for durability, with flame retardant and UV resistant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 9.5MM Blue 5M Box
Brand: Cabac
SKU: XLP10BL-5M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink Diameter: 9.5mm
- After-shrink Diameter: 4.8mm
- Recovered Wall Thickness: 0.62mm
- Length: 5 meters
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 9.5mm x 5000mm x 9.5mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UV stabilised except clear variants
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Heatshrink Thin Wall 9.5MM Blue 5M Box is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
