Heatshrink Thin Wall 9.5MM | Flame Retardant | Flexible & UV Resistant | Blue by Cabac
Heatshrink thin wall tubing with 9.5mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and UV resistance for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

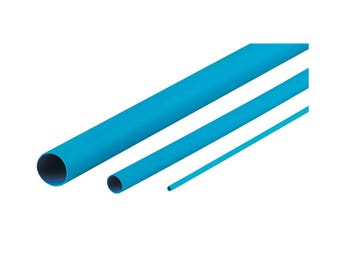

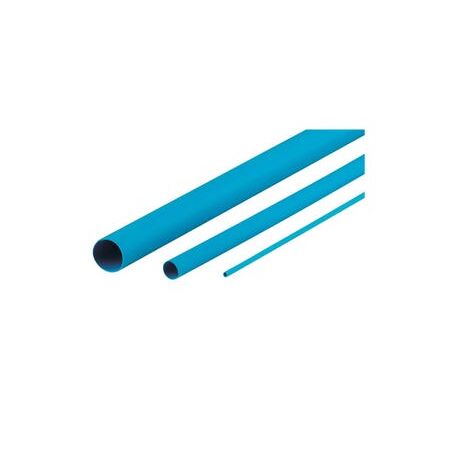

Product Name/Title: Heatshrink Thin Wall 9.5MM Blue
Brand: Cabac
SKU: XLP10BL
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink Diameter: 9.5mm
- After-shrink Diameter: 4.8mm
- Recovered Wall Thickness: 0.62mm
- Length: 50m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 9.5mm x 50000mm x 9.5mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Provides electrical and mechanical protection
- Resistant to common fluids and solvents
- Shrinks to approximately 50% of pre-shrink diameter upon heating
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical and environmental protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 9.5MM Blue is available for immediate purchase. Ideal for electrical insulation and protection applications in residential, commercial, and industrial settings.
