Heatshrink Thin Wall Tubing 1.6MM Black | -75 to +135°C | Flame Retardant & UV Resistant by Cabac

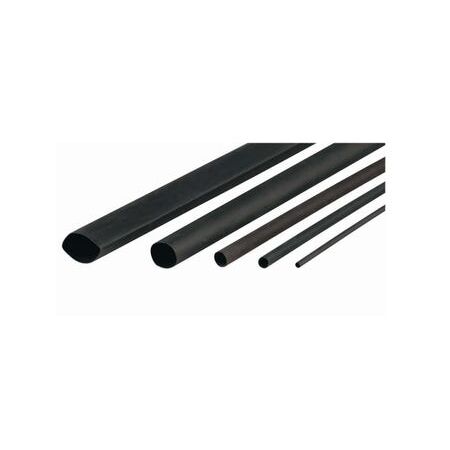

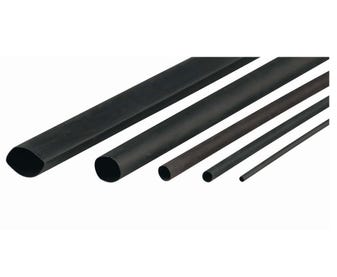

The Cabac Heatshrink Thin Wall 1.6MM Black 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Black 1.2M
Brand: Cabac
SKU: XLP1.5BK/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Black Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL224 VW1 File No. E366157 certified
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.02 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, impact and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and durable with high tensile strength
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional using appropriate heat shrinking tools such as a CABAC heat gun (Part No. HG2232 or HG2233) to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Black 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
