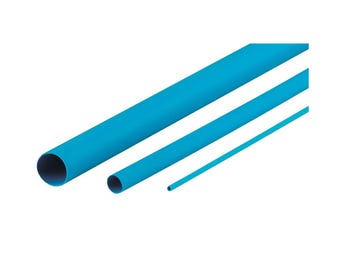

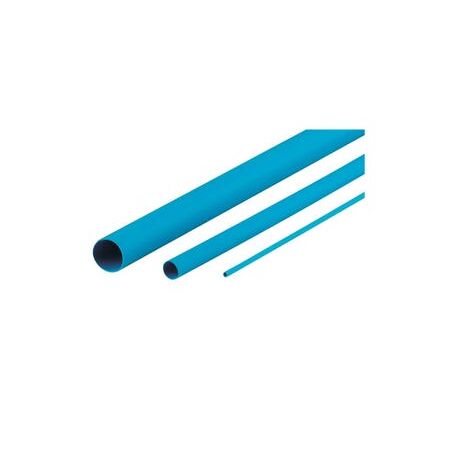

Heatshrink Thin Wall Tubing 1.6MM Blue | -75 to +135°C | Flame Retardant & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 1.6MM Blue 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding. It offers resistance to abrasion, UV radiation, and common solvents, suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Blue 1.2M
Brand: Cabac
SKU: XLP1.5BL/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.01 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Flexible and impact resistant
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Blue 1.2M is available for immediate purchase, ideal for electrical insulation and protection applications.
