Heatshrink Thin Wall Tubing 1.6MM | Flame Retardant | Flexible & UV Resistant by Cabac

BRAND: CABAC
SKU: XLP1.5Y
$207.40 List price: $251.00
+

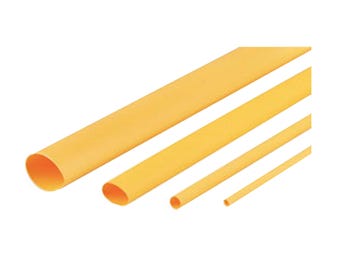

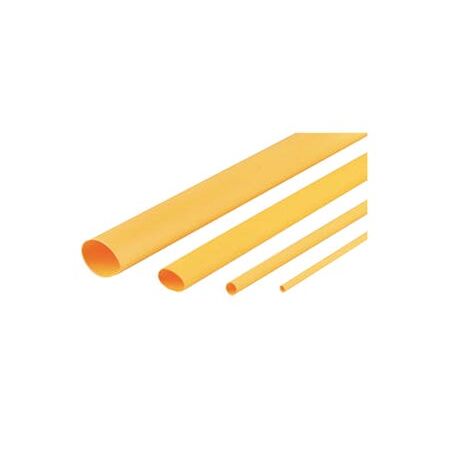

The Cabac Heatshrink Thin Wall 1.6MM is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.

Product Name/Title: Heatshrink Thin Wall 1.6MM Box

Brand: Cabac

SKU: XLP1.5Y

Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink, Electrical Insulation Tubing, Heat Shrink Sleeving

Technical Specifications
  • Material: Electron Beam Cross Linked Polyolefin
  • Operating Temperature Range: -75 to +135 degrees Celsius
  • Shrinkage Temperature: > 105 degrees Celsius
  • Longitudinal Shrinkage: < 5%
  • Tensile Strength: 10.4 MPa
  • Breakdown Voltage: 25 kV/mm wall thickness
  • Elongation at Break Point: 400%
  • Water Absorption: 0.15% max
  • Voltage Rating: 600V
  • Heat Shock Resistance: 250 degrees Celsius for 4 hours
  • Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
  • Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
  • Weight: 0.1 kg
Key Features
  • Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
  • Flexible and resistant to impact, abrasion, and UV radiation
  • Shrinks to approximately 50% of pre-shrink diameter upon heating
  • Resistant to common fluids and solvents
  • UV stabilised except clear variants
  • Recommended use with CABAC heat guns (Part No. HG2232 or HG2233)
Professional Installation Requirements
  • Installation should be performed by qualified personnel using appropriate heat shrinking tools such as CABAC heat guns for optimal performance and safety.
Applications
  • Electrical insulation and protection of conductors
  • Colour coding of electrical wiring
  • Protection against environmental factors such as fluids and solvents
  • Mechanical protection in electrical and associated industries
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable and long-lasting material reduces need for frequent replacements
  • UV resistance extends product life in outdoor applications
  • Protects electrical components, reducing waste from damage
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.

Available Now

The Cabac Heatshrink Thin Wall 1.6MM is available for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
