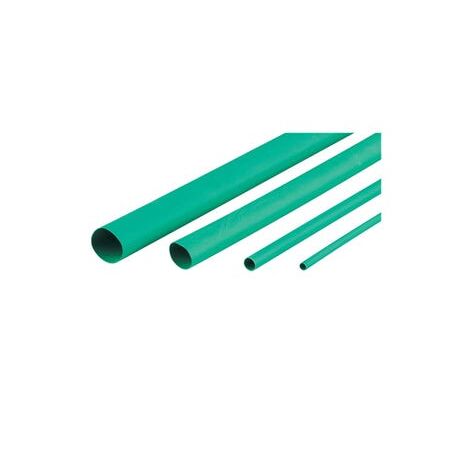

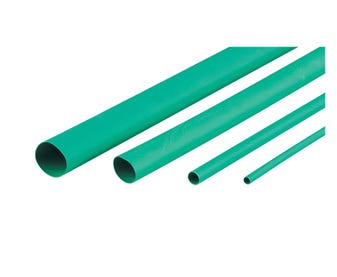

Heatshrink Thin Wall Tubing 1.6MM Green | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
Cabac Heatshrink Thin Wall 1.6MM Green 1.2M is a flame retardant, flexible heat shrink tubing used for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pre-shrink diameter: 1.6mm
- After-shrink diameter: 0.8mm
- Recovered wall thickness: 0.4mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- Dimensions (H x L x W): 1.6mm x 1200mm x 1.6mm
- Weight: 0.1 kg
Key Features
- Flame retardant
- Flexible and resistant to impact, abrasion, and UV radiation
- Made from cross-linked polyolefin using high-energy electron beam technology
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UL certified and compliant with ASTM D2671
- Resistant to common fluids and solvents
Professional Installation Requirements
- Professional installation recommended using a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, preventing failures and associated environmental impact
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Green 1.2M is available for immediate purchase, ideal for electrical insulation and protection applications.
