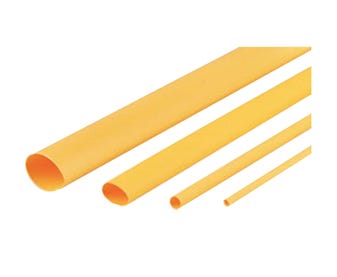

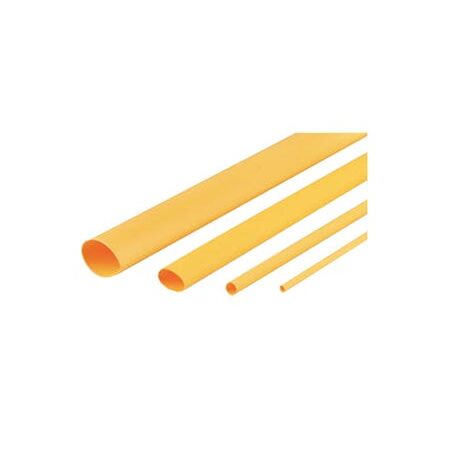

Heatshrink Thin Wall Tubing 1.6MM | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 1.6MM 1.2M is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Box 1.2M
Brand: Cabac
SKU: XLP1.5Y/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 1.6mm
Technical Specifications
- Pre-shrink diameter: 1.6mm
- After-shrink diameter: 0.8mm
- Recovered wall thickness: 0.4mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- Dimensions (H x L x W): 16mm x 1200mm x 16mm
- Weight: 0.02 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
- Continuous operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Installation requires heating with a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinkage and insulation. Recommended to be installed by qualified electrical professionals.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces electrical waste
- UV resistance extends product life, reducing replacement frequency
- Protects wiring from environmental damage, enhancing system longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM 1.2M tubing is available for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
