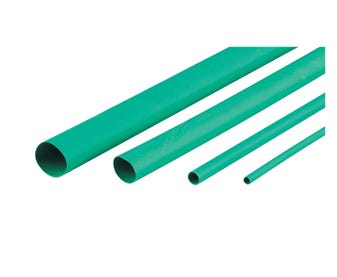

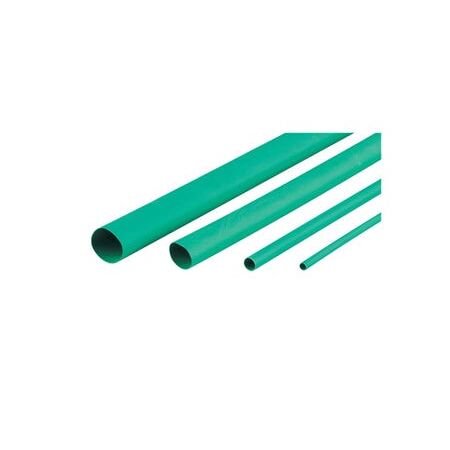

Heatshrink Thin Wall Tubing 12.7MM Green | Flame Retardant | Flexible & UV Resistant by Cabac
The Cabac Heatshrink Thin Wall 12.7MM Green is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 50m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV Stabilised except clear variants
- Dimensions (H x L x W): 127mm x 50000mm x 127mm
- Weight: 0.1 kg
Key Features
- Flame retardant thin wall heat shrink tubing
- Made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty details not specified; typically covered against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM Green is available for immediate purchase, ideal for electrical insulation and protection applications in industrial and commercial settings.
