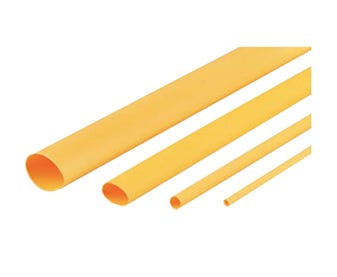

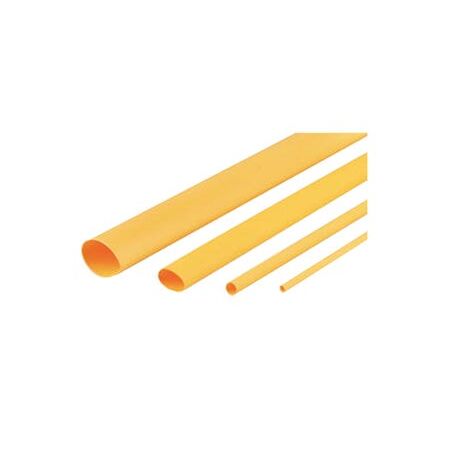

Heatshrink Thin Wall Tubing 12.7MM | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
Cabac Heatshrink Thin Wall 12.7MM 1.2M is a flame retardant, flexible heat shrink tubing used for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV stabilized except clear variants
- Dimensions (H x L x W): 12.7mm x 1200mm x 12.7mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; refer to manufacturer for details.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
