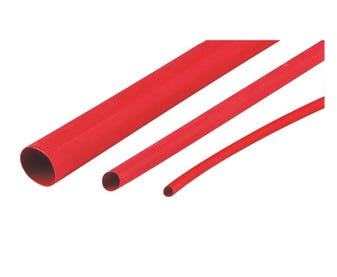

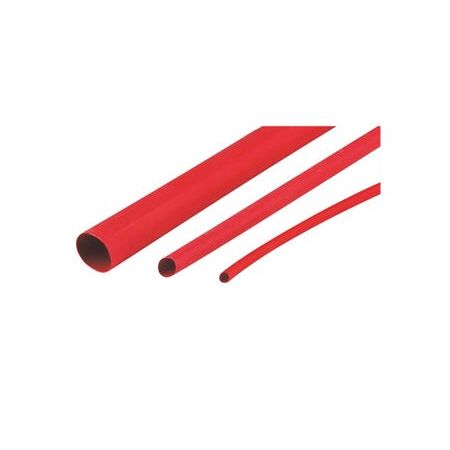

Heatshrink Thin Wall Tubing 12.7MM Red | Flame Retardant | UV Resistant | 10M by Cabac
Cabac Heatshrink Thin Wall 12.7MM Red 10M Box provides flame retardant, flexible, and UV resistant insulation tubing for electrical and mechanical protection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 12.7MM Red 10M Box
Brand: Cabac
SKU: XLP13RD-10M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 10 meters
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 127mm x 10000mm x 127mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variant
- Flexible and durable
- Shrinks to approximately 50% of pre-shrink diameter upon heating
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional using appropriate heat shrinking tools such as a CABAC heat gun (Part No. HG2232 or HG2233) to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against common fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV stabilization extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM Red 10M Box is available now for immediate purchase. Ideal for electrical insulation, protection, and colour coding in industrial, commercial, and residential applications.
