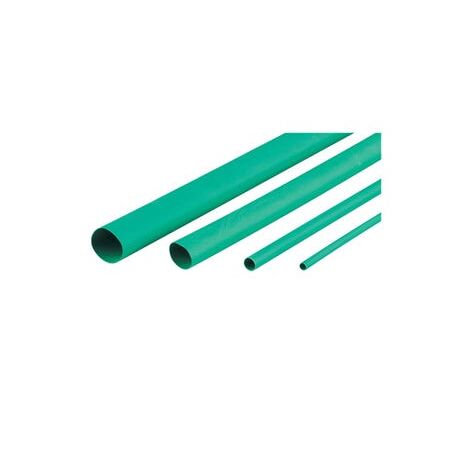

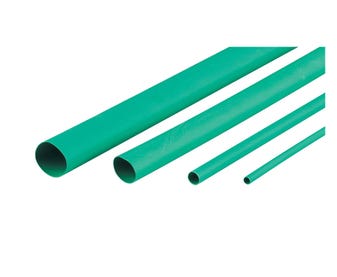

Heatshrink Thin Wall Tubing 19MM Green | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 19MM Green 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV radiation, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Green 1.2M
Brand: Cabac
SKU: XLP20G/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Green Heatshrink Sleeve, Polyolefin Heatshrink, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 19.1mm
- After-shrink diameter: 9.5mm
- Recovered wall thickness: 0.68mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 19mm x 1200mm x 19mm
- Weight: 0.02 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- Operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Professional installation recommended to ensure proper heat shrinking and electrical safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in wiring and cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste from damaged wiring
- UV resistance extends product life, reducing replacement frequency
Warranty Information
Warranty details not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 19MM Green 1.2M is available for immediate purchase, ideal for electrical insulation and protection applications.
