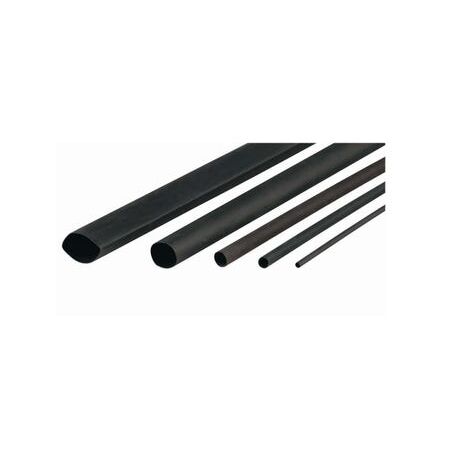

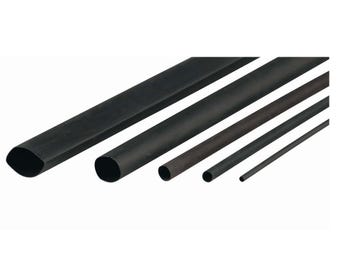

Heatshrink Thin Wall Tubing 2.4MM Black | Flame Retardant | Flexible & UV Resistant | 10M by Cabac
The Cabac Heatshrink Thin Wall 2.4MM Black 10M Box is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2.4MM Black 10M Box
Brand: Cabac
SKU: XLP2.5BK-10M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Black Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 2.4mm
- After-shrink diameter: 1.2mm
- Recovered wall thickness: 0.48mm
- Length: 10 meters
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 10000mm x n/a mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- Continuous operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Professional installation recommended to ensure proper application and safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM Black 10M Box is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
