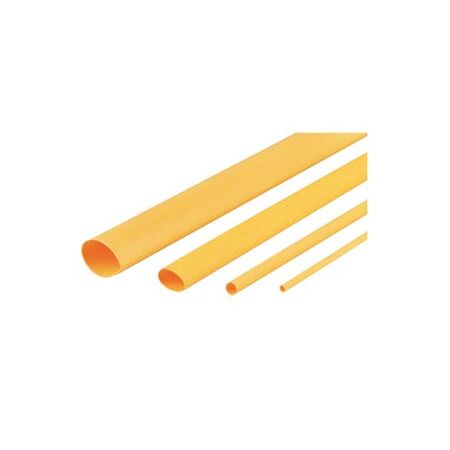

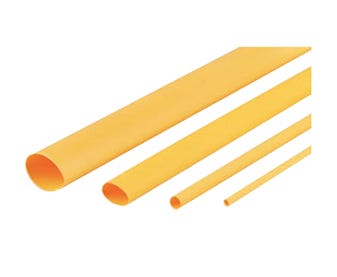

Heatshrink Thin Wall Tubing 2.4MM | Flame Retardant | UV Resistant | 1.2M by Cabac
Cabac Heatshrink Thin Wall 2.4MM 1.2M Yellow Polyolefin Tubing provides electrical insulation, mechanical protection, and environmental resistance for conductors in electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 2.4mm
- After-shrink diameter: 1.2mm
- Recovered wall thickness: 0.48mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UV Stabilised except clear variants
- Dimensions (H x L x W): 2.4mm x 1200mm x 2.4mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
- Operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Installation requires heating with a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life in outdoor applications
- Protects electrical components from environmental damage, reducing waste
Warranty Information
Warranty information not specified; typically covered by manufacturer against defects.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM 1.2M tubing is available for immediate purchase, ideal for electrical insulation and protection applications.
