Trade Discount 17%

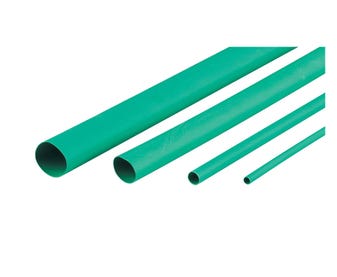

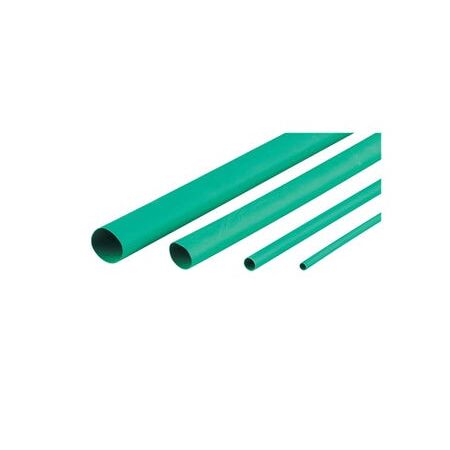

Heatshrink Thin Wall Tubing 3.2MM Green | Flame Retardant | Flexible & UV Resistant by Cabac
Cabac Heatshrink Thin Wall 3.2MM Green is a flame retardant, flexible polyolefin tubing used for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 3.2mm
- After-shrink diameter: 1.6mm
- Recovered wall thickness: 0.48mm
- Length: 200m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): 3.2mm x 200000mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
- Operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty information not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 3.2MM Green is available for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
