Heatshrink Tubing Thin Wall 3.2mm Flame-Retardant Blue 10m Cabac

BRAND: CABAC
SKU: XLP3BL-10M
$20.10 List price: $26.90
1 EA ($20.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access

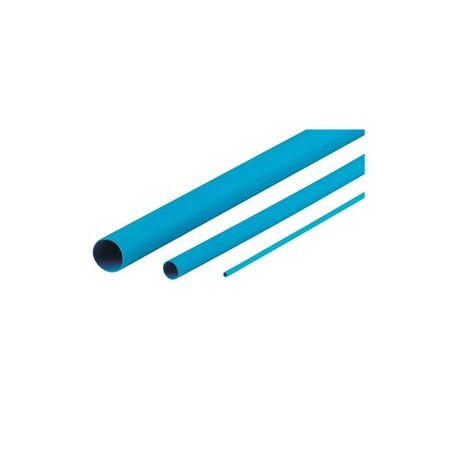

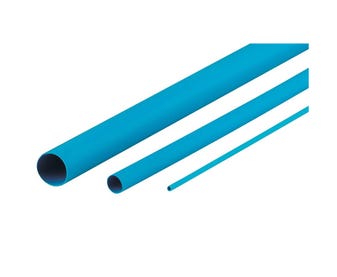

The Cabac Heatshrink Thin Wall 3.2MM Blue 10M Box is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection
Technical Specifications
  • Material: Electron Beam Cross Linked Polyolefin
  • Continuous Operating Temperature: -75 to +135 °C
  • Shrinkage Temperature: > 105 °C
  • Longitudinal Shrinkage: < 5%
  • Tensile Strength: 10.4 MPa
  • Breakdown Voltage: 25 kV/mm wall thickness
  • Elongation at Break Point: 400%
  • Water Absorption: 0.15% max
  • Voltage Rating: 600V
  • Heat Shock Resistance: 250 °C for 4 hours
  • UL224 VW1 File No. E366157 certified
  • Complies with ASTM D2671
  • Dimensions (H x L x W): 42 mm x 10000 mm x 42 mm
  • Weight: 0.1 kg
Key Features
  • Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
  • Flexible and resistant to impact, abrasion, and UV radiation
  • Shrinks to approximately 50% of pre-shrink diameter upon heating
  • Resistant to common fluids and solvents
  • UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
  • Professional installation recommended to ensure proper heat application and secure fitting for electrical safety.
Applications
  • Electrical insulation and protection of conductors
  • Colour coding in electrical and associated industries
  • Protection against environmental factors such as fluids and solvents
  • Mechanical protection in electrical installations
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable and long-lasting material reduces need for frequent replacements
  • UV resistance extends product life, minimizing waste
  • Protects electrical components, reducing risk of failure and electronic waste
Warranty Information

Warranty information not specified; typically covered by manufacturer standard warranty.

Available Now

The Cabac Heatshrink Thin Wall 3.2MM Blue 10M Box is available for immediate purchase, ideal for electrical insulation and protection applications.
