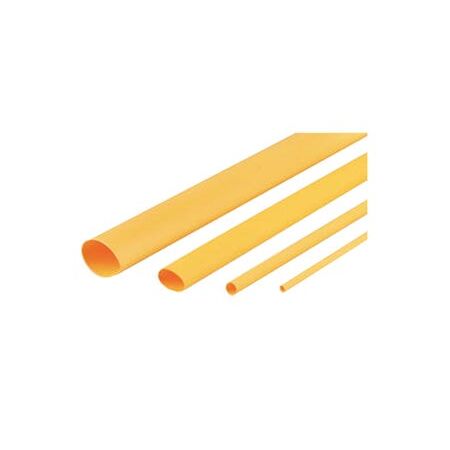

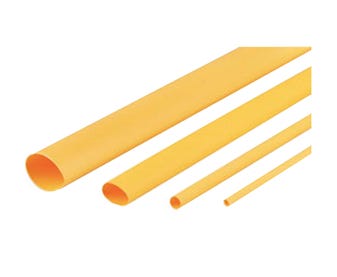

Heatshrink Thin Wall Tubing 3.2MM | Flame Retardant | UV Resistant | Flexible | 1.2M by Cabac
Cabac Heatshrink Thin Wall 3.2MM 1.2M Yellow Polyolefin Tubing provides electrical and mechanical protection for conductors with flame retardant, flexible, and UV resistant properties, suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 3.2MM Box 1.2M
Brand: Cabac
SKU: XLP3Y/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 3.2mm
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 3.2mm
- After-shrink diameter: 1.6mm
- Recovered wall thickness: 0.48mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV stabilized except clear variants
- Dimensions (H x L x W): 3.2mm x 1200mm x 3.2mm
- Weight: 0.02 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty information not specified; standard manufacturer warranty applies.
Available Now
The Cabac Heatshrink Thin Wall 3.2MM 1.2M tubing is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
