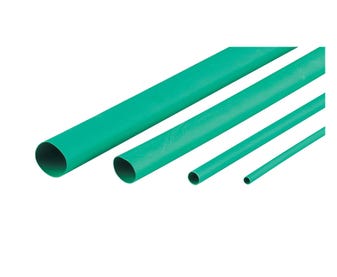

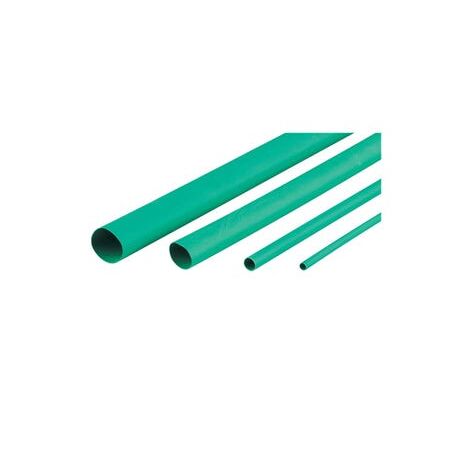

Heatshrink Thin Wall Tubing 38MM Green | Flame Retardant | Flexible & UV Resistant by Cabac
Cabac Heatshrink Thin Wall 38MM Green is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to UV, abrasion, and solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 38MM Green
Brand: Cabac
SKU: XLP38G
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Green Heatshrink Sleeve
Technical Specifications
- Pre-shrink diameter: 38.1mm
- After-shrink diameter: 19.1mm
- Recovered wall thickness: 1mm
- Length: 25m roll
- Continuous operating temperature: -75 to +135°C
- Shrinkage temperature: > 105°C
- Longitudinal shrinkage: < 5%
- Tensile strength: 10.4 MPa
- Breakdown voltage: 25 kV/mm wall thickness
- Elongation at break point: 400%
- Water absorption: 0.15% max
- Voltage rating: 600V
- Heat shock resistance: 250°C for 4 hours
- Dimensions (H x L x W): 10mm x 25000mm x 381mm
- Weight: 0.1 kg
Key Features
- Flame retardant and flexible thin wall heat shrink tubing
- Made from electron beam cross-linked polyolefin
- Resistant to impact, abrasion, UV radiation, common fluids, and solvents
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Operating temperature range from -75 to +135 degrees Celsius
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Professional installation recommended using a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 38MM Green is available for immediate purchase, ideal for electrical insulation and protection applications.
