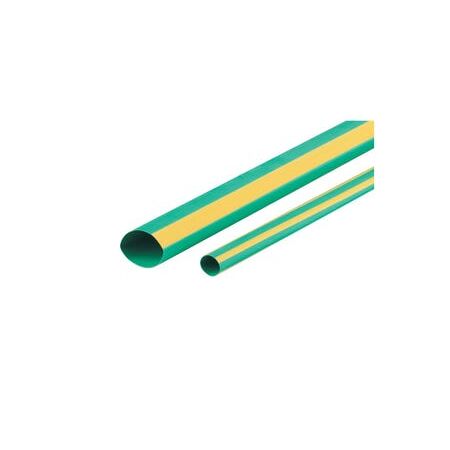

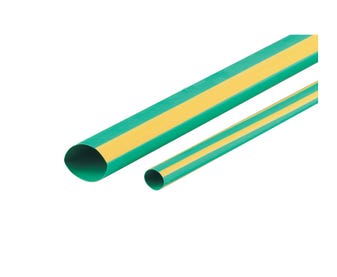

Heatshrink Tubing Thin Wall 38mm Flame-Retardant Yellow-Green Cabac

BRAND: CABAC
SKU: XLP38YG
$282.00 List price: $376.00
25 ROL ($11.28 per ROL)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Heatshrink Thin Wall 38MM Yellow Green provides flame retardant, flexible, and UV resistant insulation and protection for electrical conductors
Technical Specifications
  • Material: Electron Beam Cross Linked Polyolefin
  • Continuous Operating Temperature: -75 to +135 °C
  • Shrinkage Temperature: > 105 °C
  • Longitudinal Shrinkage: < 5%
  • Tensile Strength: 10.4 MPa
  • Breakdown Voltage: 25 kV/mm wall thickness
  • Elongation at Break Point: 400%
  • Water Absorption: 0.15% max
  • Voltage Rating: 600V
  • Heat Shock Resistance: 250 °C for 4 hours
  • UL224 VW1 File No. E366157 compliant
  • ASTM D2671 compliant
  • Dimensions (H x L x W): 48 mm x 25000 mm x 48 mm
  • Weight: 0.1 kg
Key Features
  • Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
  • Flexible and resistant to impact, abrasion, and UV radiation
  • Shrinks to approximately 50% of pre-shrink diameter upon heating
  • Resistant to common fluids and solvents
  • UL certified and compliant with ASTM D2671
  • UV stabilised except clear variants
Professional Installation Requirements
  • Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
  • Electrical insulation and protection of conductors
  • Colour coding in electrical and associated industries
  • Protection against environmental factors such as fluids and solvents
  • Mechanical protection in electrical installations
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable and long-lasting insulation reduces need for frequent replacements
  • UV resistance extends product life, reducing waste
  • Protects electrical components from environmental damage, enhancing system efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.

Available Now

The Cabac Heatshrink Thin Wall 38MM Yellow/Green is available for immediate purchase, ideal for electrical insulation and protection applications.
