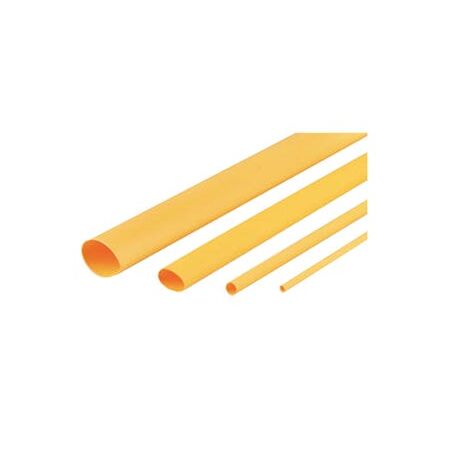

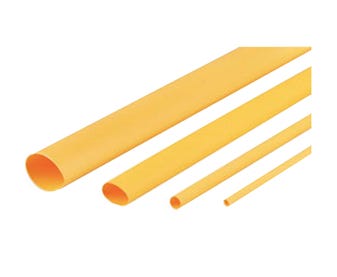

Heatshrink Thin Wall Tubing 4.8MM | -75 to +135°C | Flame Retardant & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 4.8MM 1.2M is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 4.8MM Box 1.2M
Brand: Cabac
SKU: XLP5Y/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Heat Shrink Tube, Flame Retardant Heatshrink
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.02 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Flexible and impact resistant
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate heat gun tools such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing failure and electronic waste
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 4.8MM 1.2M is available for immediate purchase, ideal for electrical insulation and protection applications in residential, commercial, and industrial settings.
