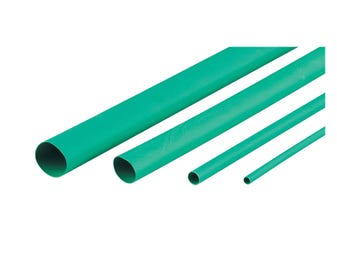

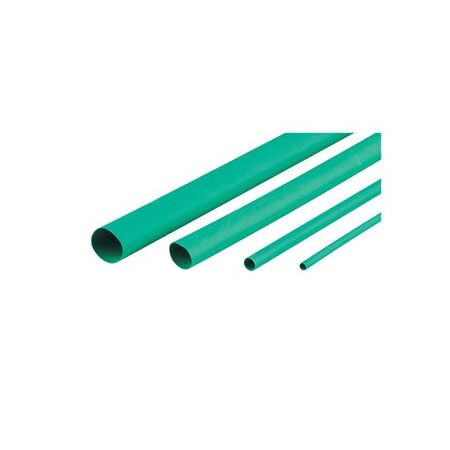

Heatshrink Thin Wall Tubing 50.8MM | Flame Retardant | Flexible & UV Resistant | Green by Cabac
The Cabac Heatshrink Thin Wall 50.8MM Green is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink Diameter: 50.8mm
- After-shrink Diameter: 25.4mm
- Recovered Wall Thickness: 1.1mm
- Length: 25m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL224 VW1 File No. E366157 certified
- Complies with ASTM D2671
- Dimensions (H x L x W): 25mm x 25000mm x 508mm
- Weight: 0.2 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation recommended to ensure proper heat application and secure fitting using appropriate heat gun tools.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in wiring and cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Warranty information not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 50.8MM Green is available for immediate purchase, ideal for electrical insulation and protection applications in industrial and commercial settings.
