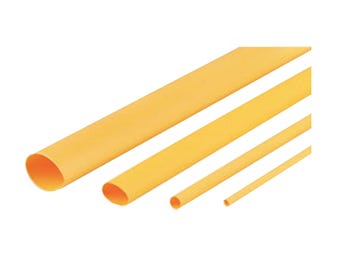

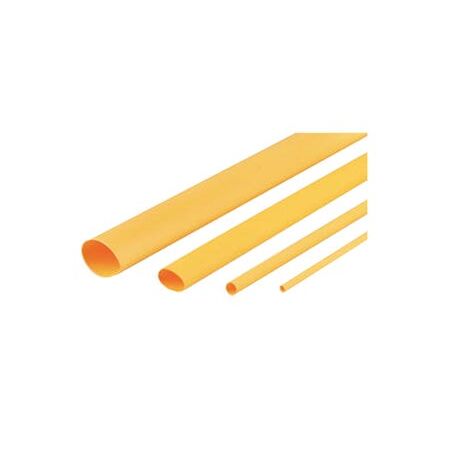

Heatshrink Thin Wall Tubing 6.4MM | Flame Retardant | Flexible & UV Resistant by Cabac
The Cabac Heatshrink Thin Wall 6.4MM is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding. It offers resistance to abrasion, UV radiation, and common fluids, suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 6.4MM Box
Brand: Cabac
SKU: XLP7Y
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeving
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Operating Temperature Range: -75 to +135 degrees Celsius
- Shrinkage Temperature: > 105 degrees Celsius
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 degrees Celsius for 4 hours
- UV Stabilised except clear variants
- Dimensions (H x L x W): n/a mm x 50000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty information not specified; typically covered by standard manufacturer warranty.
Available Now
The Cabac Heatshrink Thin Wall 6.4MM tubing is available for immediate purchase, ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
