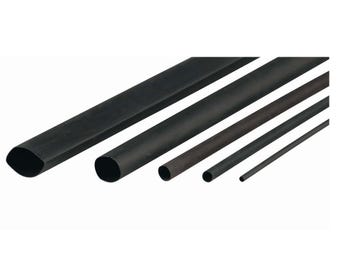

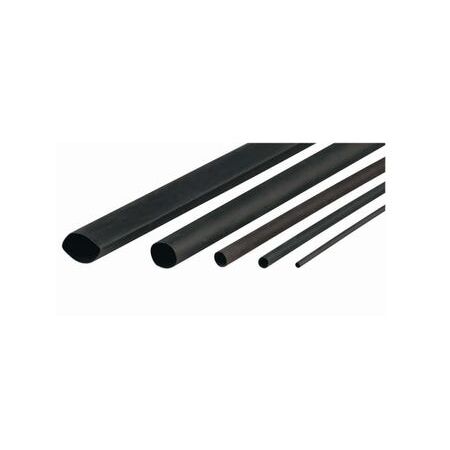

Heatshrink Thin Wall Tubing 76MM Black | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
The Cabac Heatshrink Thin Wall 76MM Black 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 76MM Black 1.2M
Brand: Cabac
SKU: XLP76BK/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Black Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 76.2mm
- After-shrink diameter: 38.1mm
- Recovered wall thickness: 1.2mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV stabilized (except clear variants)
- Dimensions (H x L x W): 12mm x 1200mm x 76mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation recommended using appropriate heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste from damaged cables
- UV resistance extends product life, reducing replacement frequency
Warranty Information
Warranty details are subject to Cabac's standard product warranty terms.
Available Now
The Cabac Heatshrink Thin Wall 76MM Black 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in industrial and commercial applications.
