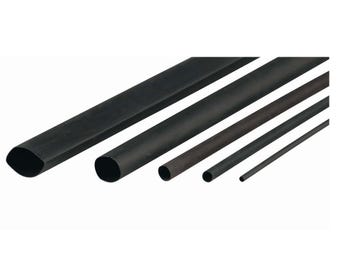

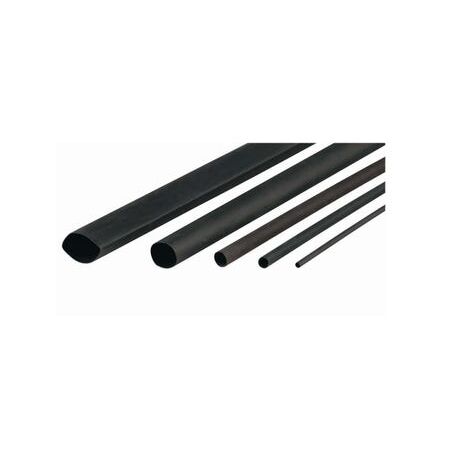

Heatshrink Thin Wall Tubing 76MM | Flame Retardant | Flexible & UV Resistant | Black by Cabac
Cabac Heatshrink Thin Wall 76MM Black is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pre-shrink diameter: 76.2mm
- After-shrink diameter: 38.1mm
- Recovered wall thickness: 1.2mm
- Length: 25m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- Dimensions (H x L x W): 12mm x 25000mm x 762mm
- Weight: 0.3 kg
Key Features
- Flame retardant thin wall heat shrink tubing
- Made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation requires heating with a suitable heat gun such as CABAC HG2232 or HG2233 for proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable protection extending the lifespan of electrical components
- Reduces waste by protecting wiring from damage and environmental exposure
Warranty Information
Warranty information not specified; typically covered by manufacturer against defects.
Available Now
The Cabac Heatshrink Thin Wall 76MM Black is available for immediate purchase, ideal for electrical insulation and protection applications.
