Heatshrink Thin Wall Tubing 76MM Red | Flame Retardant | Flexible & UV Resistant by Cabac

BRAND: CABAC
SKU: XLP76RD
$474.90 List price: $574.80
+

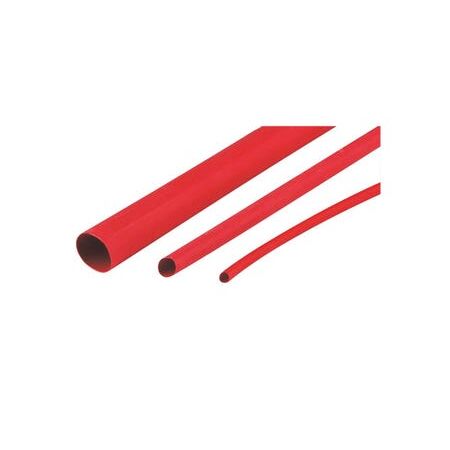

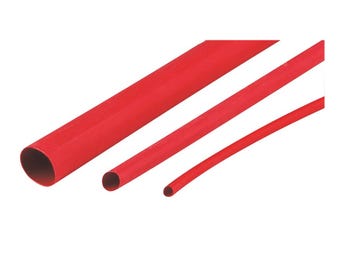

The Cabac Heatshrink Thin Wall 76MM Red is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to fluids, solvents, and abrasion.

Product Name/Title: Heatshrink Thin Wall 76MM Red

Brand: Cabac

SKU: XLP76RD

Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing

Technical Specifications
  • Material: Electron Beam Cross Linked Polyolefin
  • Pre-shrink diameter: 76.2mm
  • After-shrink diameter: 38.1mm
  • Recovered wall thickness: 1.2mm
  • Length: 25m roll
  • Continuous Operating Temperature: -75 to +135°C
  • Shrinkage Temperature: > 105°C
  • Longitudinal Shrinkage: < 5%
  • Tensile Strength: 10.4 MPa
  • Breakdown Voltage: 25 kV/mm wall thickness
  • Elongation at Break Point: 400%
  • Water Absorption: 0.15% max
  • Voltage Rating: 600V
  • Heat Shock: 250°C for 4 hours
  • UL Certified (UL224 VW1 File No. E366157)
  • Complies with ASTM D2671
  • Dimensions (H x L x W): 12mm x 25000mm x 762mm
  • Weight: 0.2 kg
Key Features
  • Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
  • Flexible and resistant to impact and abrasion
  • UV resistant except clear variants which may fade over time
  • Shrinks to approximately 50% of pre-shrink diameter upon heating
  • Resistant to common fluids and solvents
Professional Installation Requirements
  • Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
  • Electrical insulation and protection of conductors
  • Colour coding in electrical and associated industries
  • Mechanical protection against impact and abrasion
  • Environmental protection against common fluids and solvents
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • UV stabilised material extends product life reducing waste
  • Durable and resistant to environmental damage reducing replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac Heatshrink Thin Wall 76MM Red is available for immediate purchase. Ideal for electrical insulation and protection applications in industrial and commercial settings.
