Heatshrink Thin Wall Tubing 76MM | Flame Retardant | UV Resistant | Flexible by Cabac

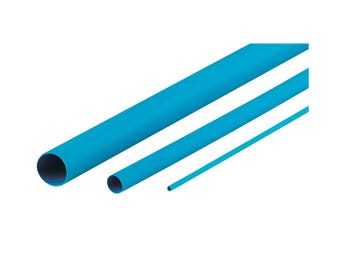

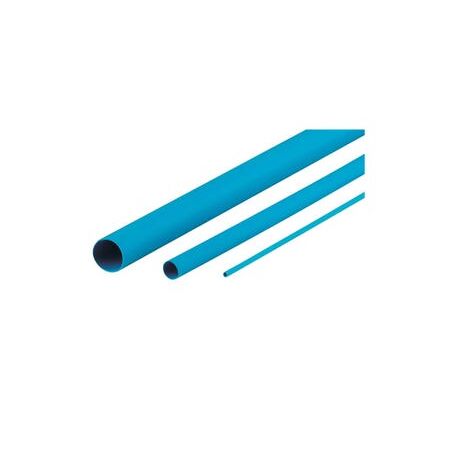

The Cabac Heatshrink Thin Wall 76MM Blue is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 76MM Blue
Brand: Cabac
SKU: XLP76BL
Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 76.2mm
- After-shrink diameter: 38.1mm
- Recovered wall thickness: 1.2mm
- Length: 25m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV Stabilised except clear variants
- Dimensions (H x L x W): 12mm x 25000mm x 762mm
- Weight: 0.2 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, impact and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in wiring and cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty details not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 76MM Blue is available for immediate purchase, ideal for electrical insulation and protection applications in industrial and commercial settings.
