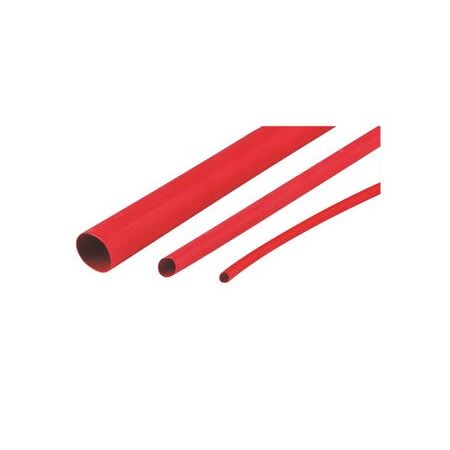

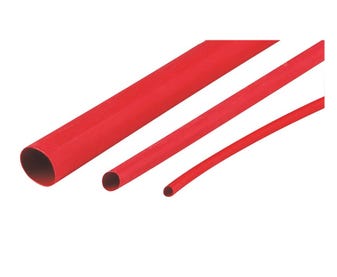

Heatshrink Thin Wall Tubing 9.5MM Red | Flame Retardant | Flexible & UV Resistant | 10M by Cabac
The Cabac Heatshrink Thin Wall 9.5MM Red 10M Box is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding, suitable for a wide range of electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 9.5MM Red 10M Box
Brand: Cabac
SKU: XLP10RD-10M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 9.5mm
- After-shrink diameter: 4.8mm
- Recovered wall thickness: 0.62mm
- Length: 10 meters
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 95mm x 10000mm x 95mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- UV resistant except clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper heat application and secure fitting.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste from damaged wiring
- UV resistance extends product life, reducing replacement frequency
- Protects electrical components from environmental damage, enhancing longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 9.5MM Red 10M Box is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
