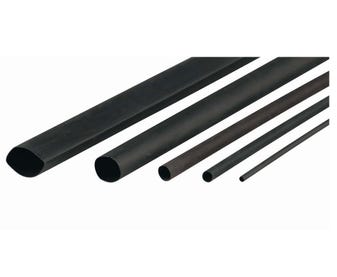

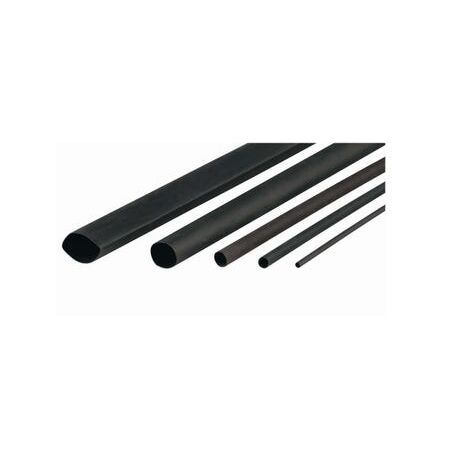

Heatshrink Tubing 12.7MM | Flame Retardant | UV Resistant | 1.2M Black by Cabac
Heatshrink tubing with 12.7mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 12.7MM Black 1.2M
Brand: Cabac
SKU: XLP13BK/4FT
Alternatively Known As: Heat shrink tubing, Heat shrink sleeve, Thin wall heatshrink, Polyolefin heat shrink tubing, Electrical insulation tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- Flame Retardant: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): 12.7mm x 1200mm x 12.7mm
- Weight: 0.1 kg
Key Features
- Flame retardant
- Made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper heat application and secure fitting.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable protection reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM Black 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
