Heatshrink Tubing 12.7MM | Flame Retardant & UV Resistant | Yellow Green by Cabac
Heatshrink tubing with 12.7mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

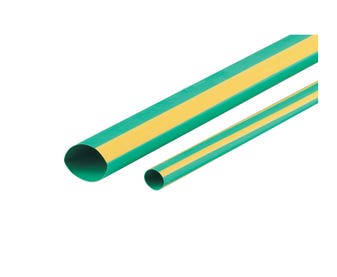

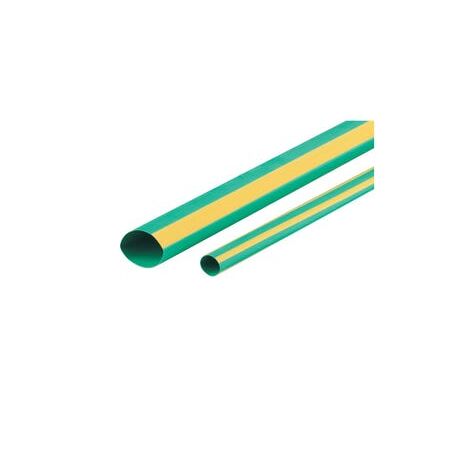

Product Name/Title: Heatshrink Thin Wall 12.7MM Yellow Green 1.2M
Brand: Cabac
SKU: XLP13YG/4FT
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Yellow Green Heatshrink
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- Flame Retardant and UV Stabilised (except clear variant)
- Dimensions (H x L x W): 12.7mm x 1200mm x 12.7mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible, impact, abrasion and UV resistant
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
- Operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; typically covered by standard manufacturer warranty.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM Yellow Green 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
