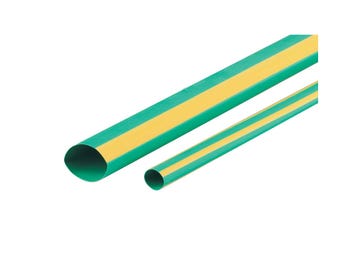

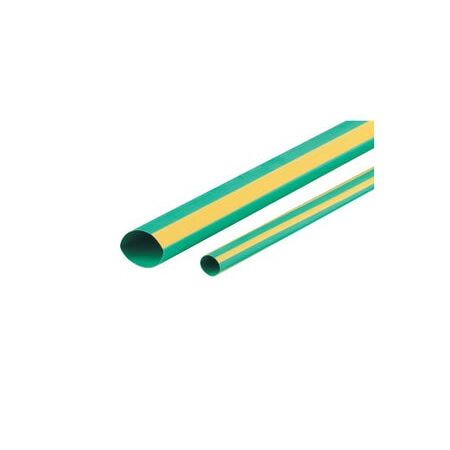

Heatshrink Tubing 12.7MM | Flame Retardant | Yellow Green by Cabac
Heatshrink tubing with 12.7MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and resistance to abrasion, UV, and solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 12.7MM Yellow Green
Brand: Cabac
SKU: XLP13YG
Alternatively Known As: Heat shrink tubing, Thin wall heatshrink, Polyolefin heat shrink, Electrical insulation tubing, Yellow green heatshrink sleeve
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Operating Temperature: -75 to +135 degrees Celsius
- Shrinkage Temperature: > 105 degrees Celsius
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 degrees Celsius for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): n/a mm x 50000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, preventing failures and associated environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM Yellow Green is available now for immediate purchase. Ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
