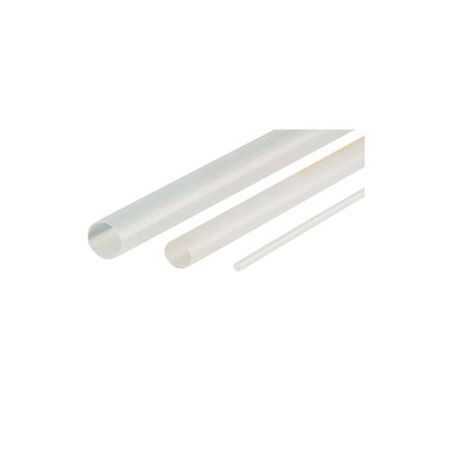

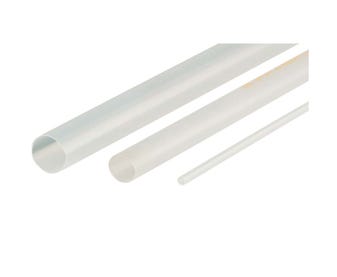

Heatshrink Tubing 19MM Clear | Flexible & Abrasion Resistant | -75°C to +135°C by Cabac
Heatshrink tubing with 19MM diameter, offering flexibility and abrasion resistance—ideal for electrical insulation and protection. Built for durability, with a wide operating temperature range from -75°C to +135°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Clear
Brand: Cabac
SKU: XLP20CL
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, XLP Heatshrink, Electrical Heatshrink Tubing, Clear Heatshrink Sleeve
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised flame retardant polyolefin
- Continuous Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671 (except clear variant is flammable)
- Voltage Rating: 600V
- Compliant Standards: UL224 VW1 File No. E366157
- Conformant Standards: MIL-1-23053/5 Class 3 (clear variant Class 2), JIS
- Dimensions (H x L x W): 19mm x 1200mm x 19mm
- Weight: 0.5 kg
Key Features
- Highly flexible
- Flame retardant except clear variant
- Abrasion and impact resistant
- Full range 1.5mm to 125mm diameter with 2:1 shrink ratio
- Available on reels or 4ft (1.2m) lengths
- UV stabilised except clear variant
- In-house cutting facility for custom cut sleeves
Professional Installation Requirements
- Professional installation is recommended to ensure proper heat shrinking and electrical safety compliance.
Applications
- Electrical insulation and protection
- Colour coding of wires and cables
- Mechanical protection in electrical and electronic applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste
- UV stabilised variants resist degradation, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Heatshrink Thin Wall 19MM Clear tubing is available now for immediate purchase. Ideal for electrical insulation and protection applications.
