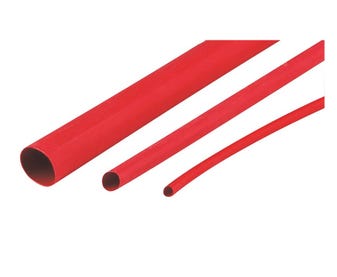

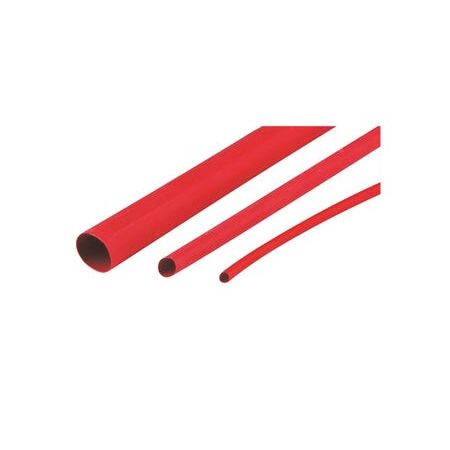

Heatshrink Tubing 19MM | Flame Retardant | Flexible & UV Resistant | 1.2M Red by Cabac
Heatshrink tubing with 19mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and UV resistance for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Red 1.2M
Brand: Cabac
SKU: XLP20RD/4FT
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 19.1mm
- After-shrink diameter: 9.5mm
- Recovered wall thickness: 0.68mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 19mm x 1200mm x 19mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- UV resistant except clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional using appropriate heat shrinking tools such as a CABAC heat gun (Part No. HG2232 or HG2233) to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection against impact and abrasion
- Environmental protection against fluids and solvents in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable protection extending the lifespan of electrical components
- Reduces waste by protecting wiring from damage and corrosion
- UV resistance helps maintain material integrity, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Heatshrink Thin Wall 19MM Red 1.2M is available now for immediate purchase. Ideal for electrical insulation, protection, and colour coding in residential, commercial, and industrial electrical applications.
