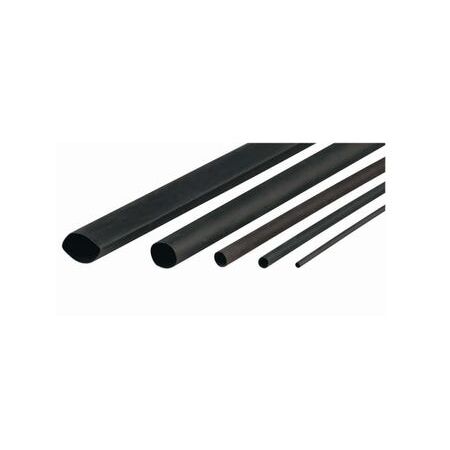

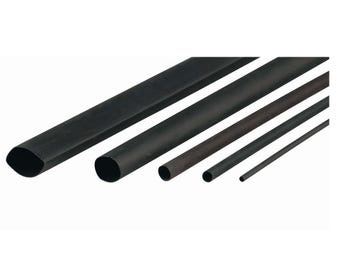

Heatshrink Tubing 19MM | Flame Retardant | UV Resistant | 5M Black by Cabac
Heatshrink tubing with 19MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Black 5M Box
Brand: Cabac
SKU: XLP20BK-5M
Alternatively Known As: Heat shrink tubing, Thin wall heatshrink, Electrical heat shrink sleeve, Polyolefin heat shrink tubing, Black heat shrink tube
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL224 VW1 File No. E366157 certified
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 5000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Installation requires heat application using a heat gun; professional installation recommended for electrical safety and optimal shrinkage.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste from damaged wiring
- UV resistance extends product life, reducing replacement frequency
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 19MM Black 5M Box is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
