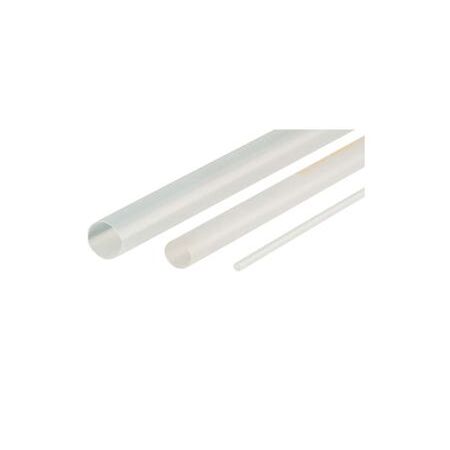

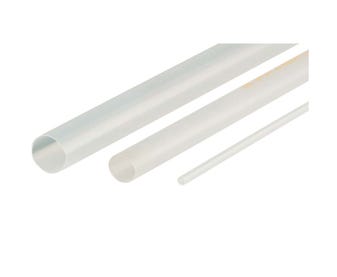

Heatshrink Tubing 2.4MM Clear | 1.2M Length | High Flexibility | Flame Retardant by Cabac
Heatshrink tubing with 2.4MM diameter and 1.2M length—ideal for electrical insulation and protection. Built for flexibility and abrasion resistance, perfect for residential, commercial, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2.4MM Clear 1.2M
Brand: Cabac
SKU: XLP2.5CL/4FT
Alternatively Known As: Heat shrink tubing, Heat shrink sleeve, Thin wall heatshrink, Electrical heat shrink tubing, Shrink wrap tubing
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised flame retardant polyolefin
- Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671
- UV Stability: Stable except clear variant
- Voltage Rating: 600V
- Conforms to MIL-1-23053/5 Class 2 (clear) and Class 3 (other colours)
- Compliant with UL224 VW1 File No. E366157
- Dimensions (H x L x W): 2.4mm x 2400mm x 2400mm
- Weight: 0.1 kg
Key Features
- Highly flexible
- Flame retardant (except clear variant)
- Abrasion and impact resistant
- Suitable for all electrical and electronic applications
- Available in reels or 4ft (1.2m) lengths
- UV stabilised range (except clear)
- In-house cutting facility for custom cut sleeves
- 2:1 shrink ratio
Professional Installation Requirements
- Professional installation is recommended to ensure proper shrinking and secure insulation using appropriate heat tools such as heat guns or heat tunnels.
Applications
- Electrical insulation
- Colour coding of wires and cables
- Mechanical protection for electrical and electronic applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable protection reduces waste from damaged cables
- Flame retardant properties enhance safety and reduce fire risk
- UV stabilisation extends product life, reducing replacement frequency
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM Clear 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
