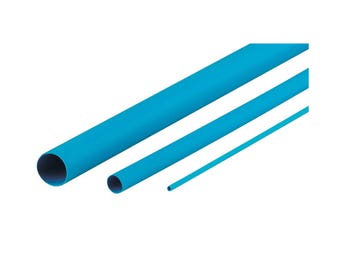

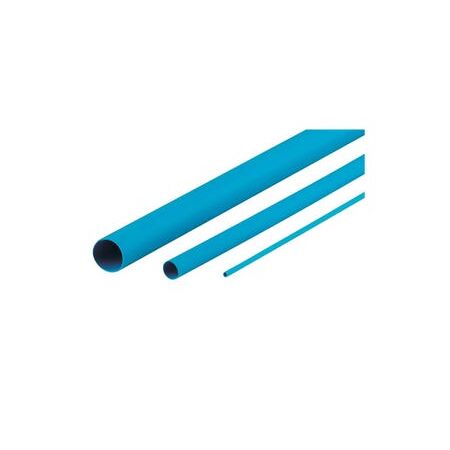

Heatshrink Tubing 3.2MM | Flame Retardant | UV Resistant | Blue by Cabac
Heatshrink tubing with 3.2mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 3.2MM Blue 1.2M
Brand: Cabac
SKU: XLP3BL/4FT
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Blue Heatshrink Sleeve
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 3.2mm
- After-shrink diameter: 1.6mm
- Recovered wall thickness: 0.48mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 3.2mm x 1200mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste from damaged cables
- UV resistance extends product life, reducing replacement frequency
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 3.2MM Blue 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
