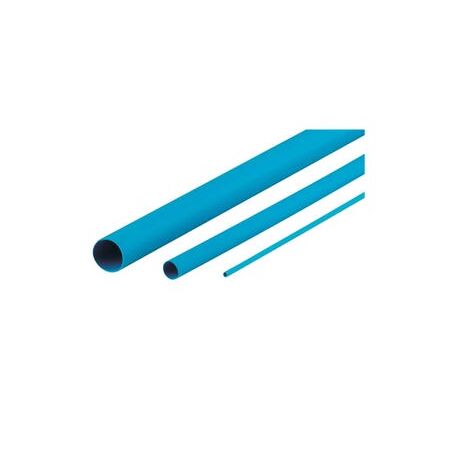

Heatshrink Tubing 4.8mm Flame-Retardant UV-Resistant Blue Cabac
Heatshrink tubing with 4.8MM diameter, flame retardant and UV resistant—ideal for electrical insulation and protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 15 mm x 100000 mm x 15 mm
- Weight: 0.2 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and durable with high tensile strength and elongation
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces waste and replacement frequency
- UV resistance extends product life in outdoor applications
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 4.8MM Blue is available for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
