Heatshrink Tubing 6.4MM | Flame Retardant | -75 to +135°C | Red by Cabac
Heatshrink tubing with 6.4MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with resistance to fluids, solvents, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

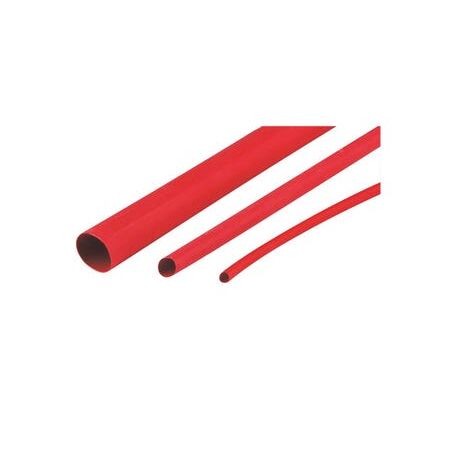

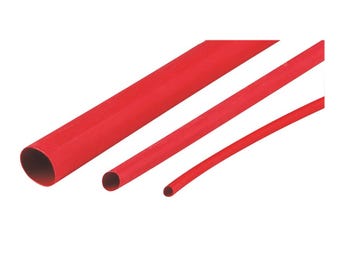

Product Name/Title: Heatshrink Thin Wall 6.4MM Red 1.2M
Brand: Cabac
SKU: XLP7RD/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
Professional Installation Requirements
- Recommended to be installed by a qualified electrician using appropriate heat gun tools for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable protection reducing the need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components from environmental damage, enhancing system longevity
Warranty Information
Warranty information not specified; typically covered by manufacturer against defects.
Available Now
The Cabac Heatshrink Thin Wall 6.4MM Red 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection applications in residential, commercial, and industrial settings.
