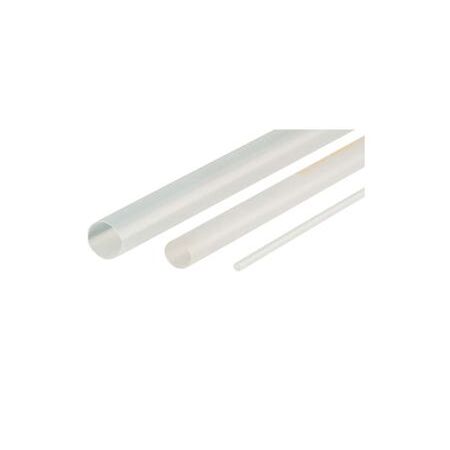

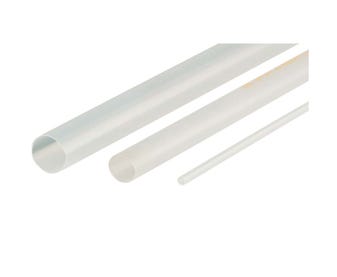

Heatshrink Tubing 9.5MM Clear | Chemically Cross-Linked | Flame Retardant by Cabac
Heatshrink tubing with 9.5mm diameter and chemically cross-linked polyolefin—ideal for electrical insulation and protection. Built for flexibility and durability, with a wide operating range from -75°C to +135°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 9.5MM Clear
Brand: Cabac
SKU: XLP10CL
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, XLP Heatshrink, Electrical Heatshrink Tubing, Clear Heatshrink Sleeve
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised flame retardant polyolefin
- Continuous Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671 (except clear variant is flammable)
- UV Stability: All tubing stable except clear variant
- Voltage Rating: 600V
- Compliant Standards: UL224 VW1 File No. E366157
- Conformant Standards: MIL-1-23053/5 Class 3 (except clear variant Class 2), JIS
- Dimensions (H x L x W): 9.5mm x 1200mm x 9.5mm
- Weight: 0.5 kg
Key Features
- Highly flexible
- Flame retardant (except clear variant)
- Abrasion and impact resistant
- Suitable for all electrical and electronic applications
- Available in a full range of diameters from 1.5mm to 125mm with 2:1 shrink ratio
- Available on reels or 4ft (1.2m) lengths
- In-house cutting facility for custom cut sleeves
- UV stabilised range except clear variant
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat shrinking tools such as heat guns or heat tunnels to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection
- Colour coding of wires and cables
- Mechanical protection in electrical and electronic applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV stabilised variants resist degradation, reducing environmental waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 9.5MM Clear is available for immediate purchase. Ideal for electrical insulation, colour coding, and mechanical protection in electrical and electronic applications.
