Home/Electrical/Accessories/Leads & Powerboards/Flex & Plugs/Heavy Duty 6 Pin Plug 300A | IP55 Rated | Quick Release & Flameproof | Ausproof

Trade Discount 19%

PL 3300V 300A 6P Plug (270) 70-C 60-65-G (245.3)

Heavy Duty 6 Pin Plug 300A | IP55 Rated | Quick Release & Flameproof | Ausproof

BRAND: Ausproof

SKU: RS2203

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

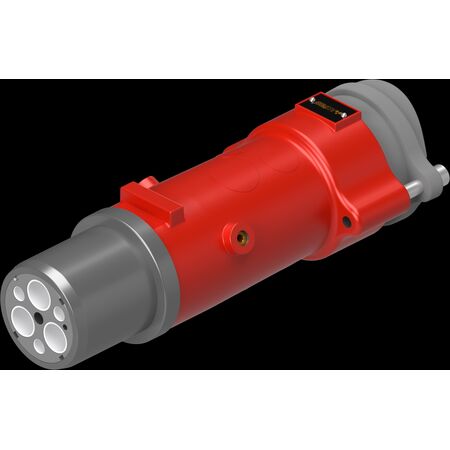

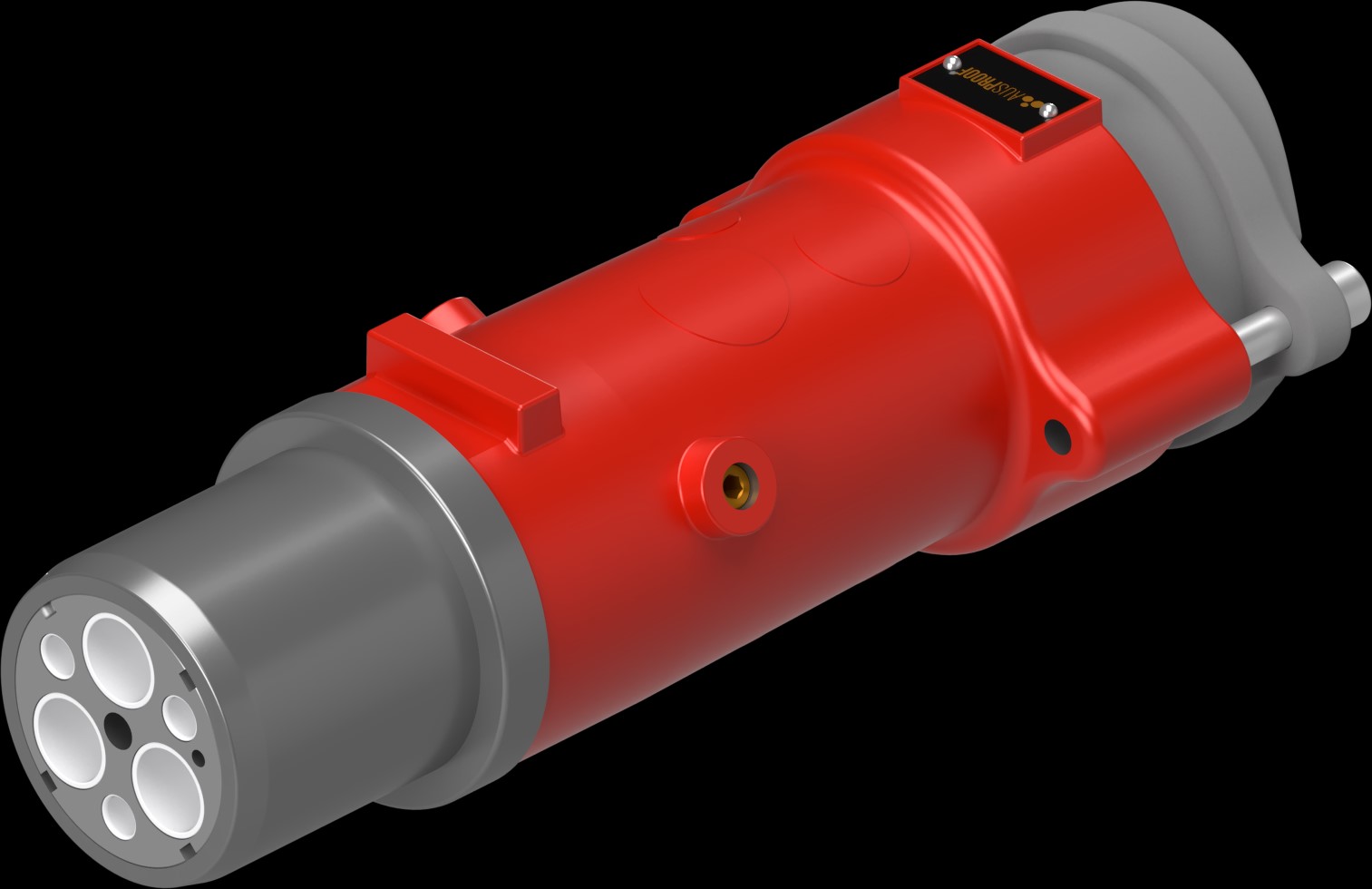

The Heavy Duty 6 Pin Plug 300A is designed for high voltage applications, featuring IP55 ingress protection and quick release functionality. Ideal for mining and tunnelling, this plug ensures safety and reliability in hazardous environments, built with durable stainless steel for extended product life.

Description

Product Name/Title: PL 3300V 300A 6P Plug (270) 70-C 60-65-G (245.3)

Brand: Ausproof

SKU: RS2203

Alternatively Known As: PL Range 300A Plug, Ex-certified 6 Pin Plug, Heavy Duty Mining Plug, Flameproof Electrical Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Plug Weight: 9.0 kg
Dimensions (H x L x W): 300mm x 250mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste by extending product life
Easy on-site repair reduces need for full replacements, minimizing material waste

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 3300V 300A 6P Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial applications.
