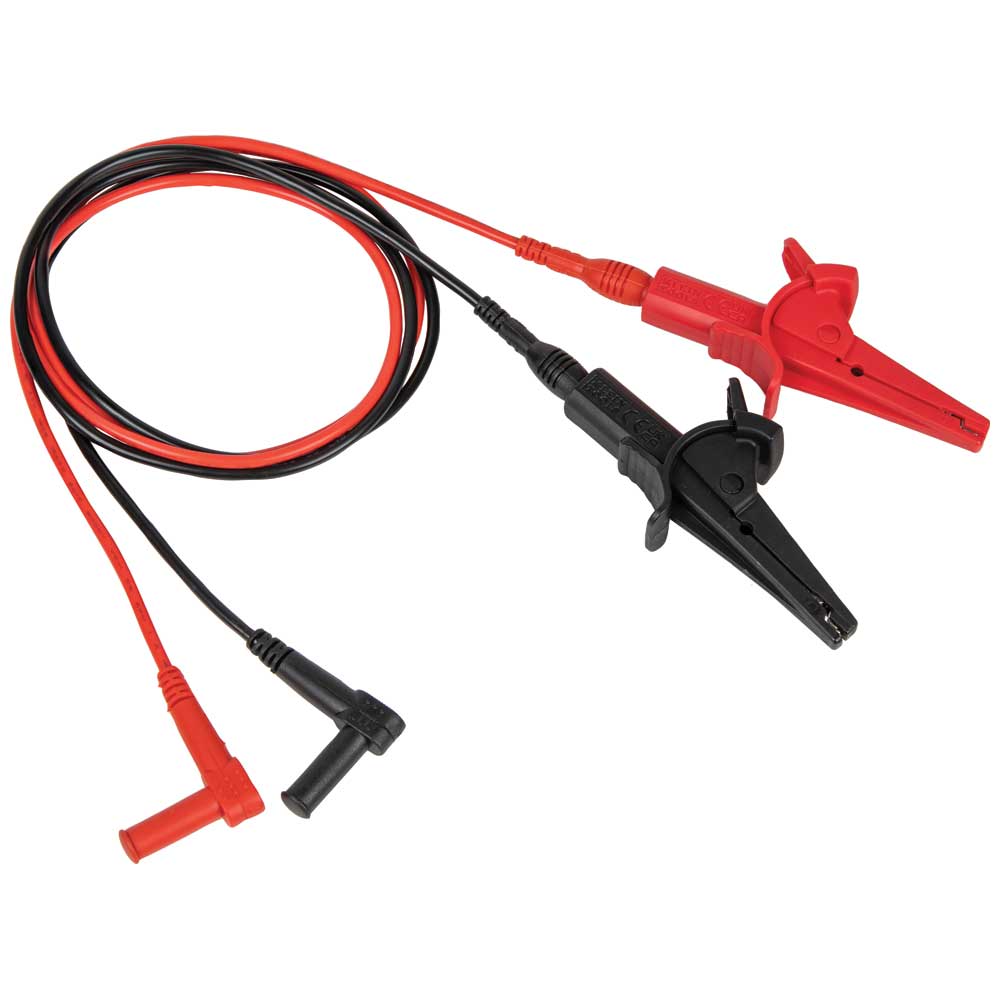

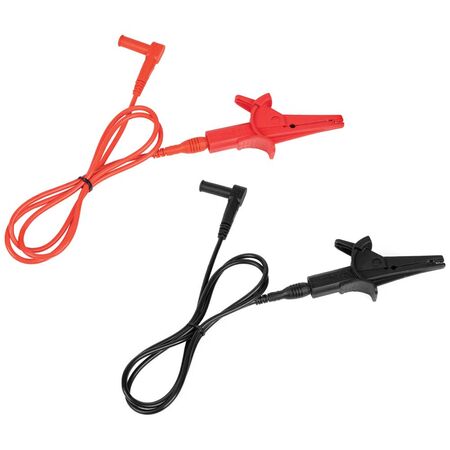

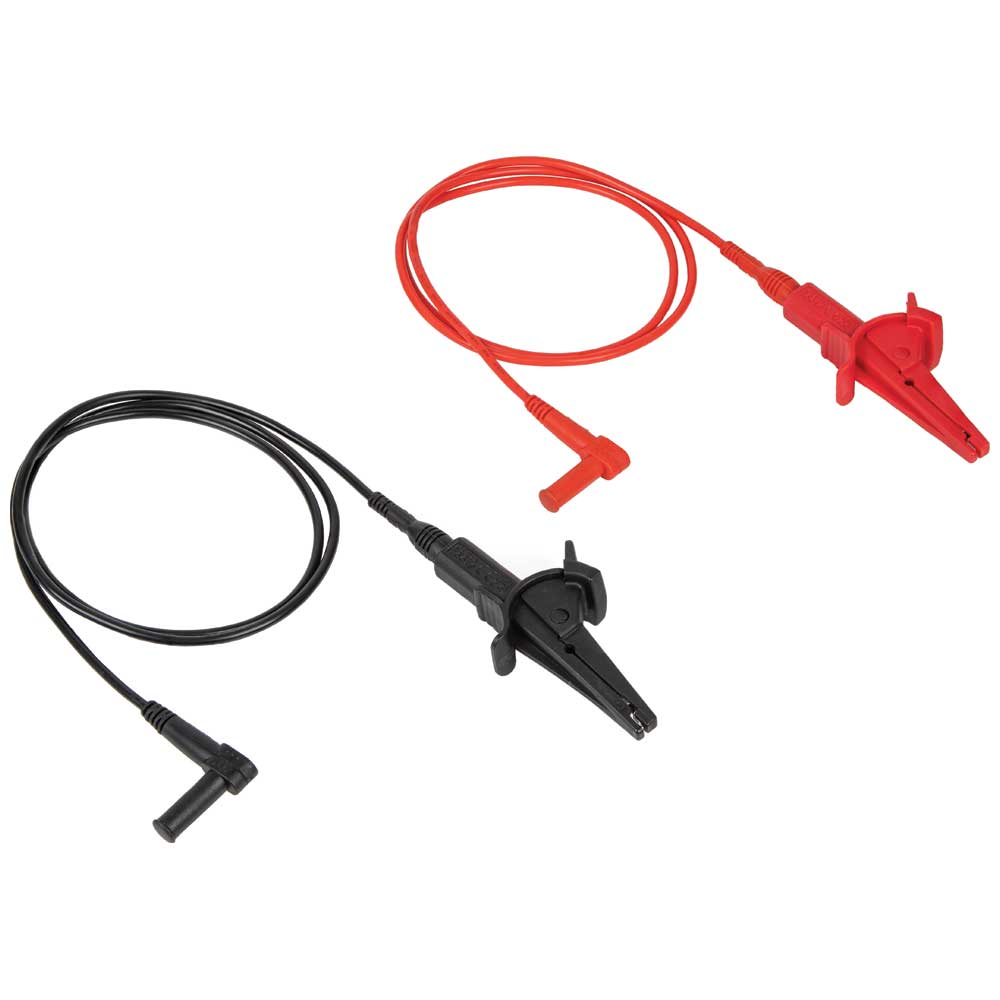

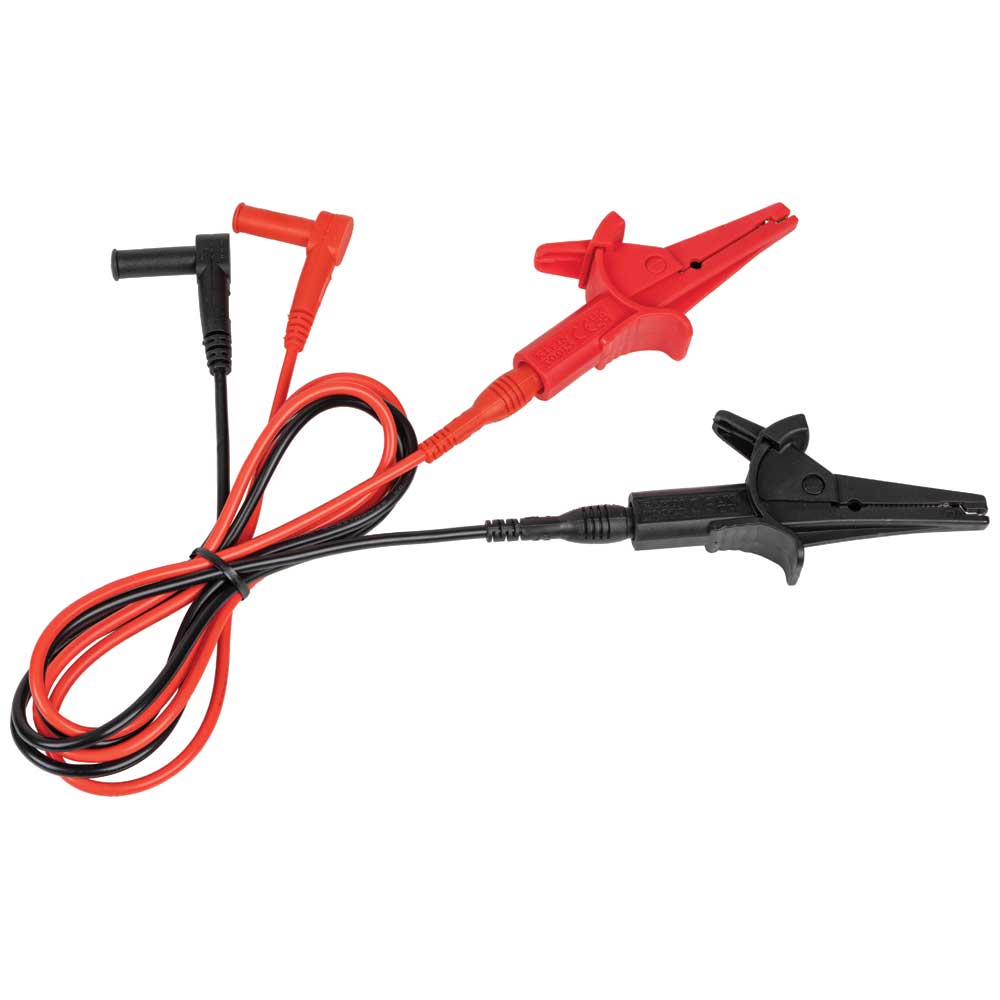

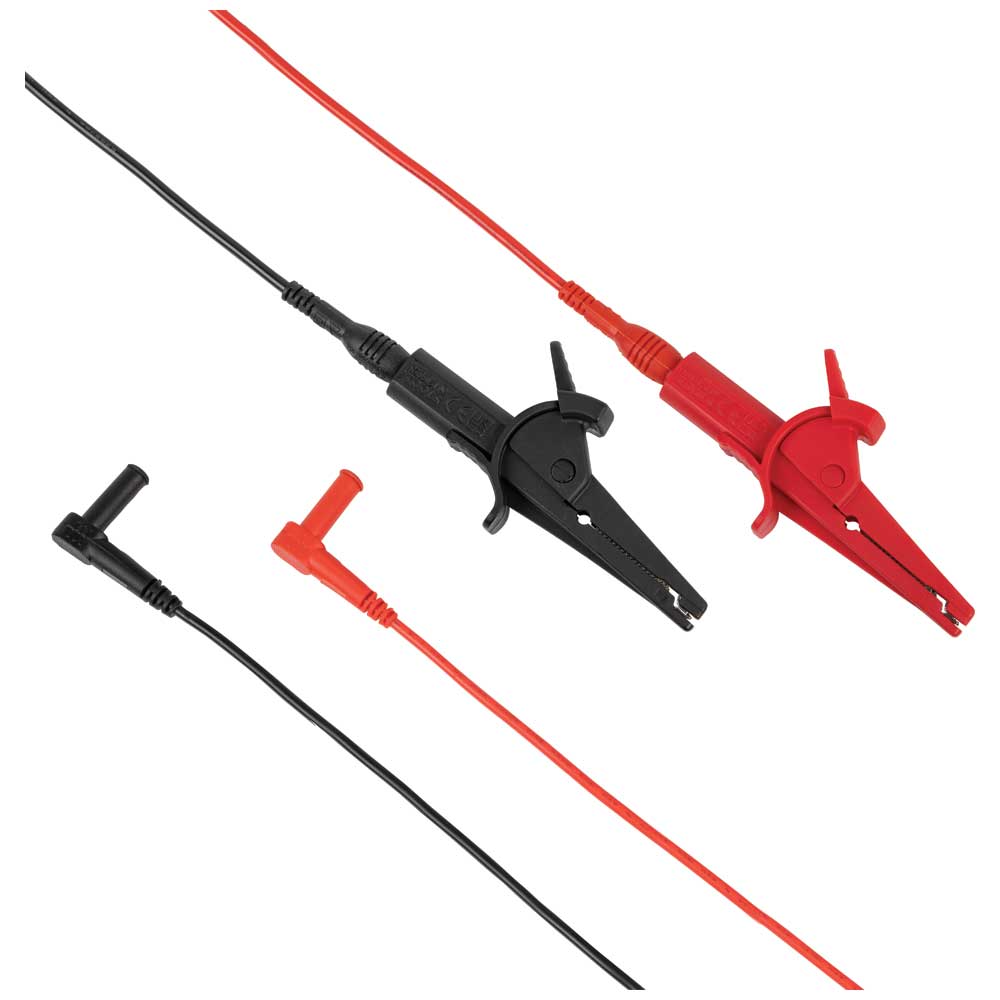

Heavy-Duty Alligator Clip Test Leads | 91.4 cm Length | 18 AWG Double Insulated | CAT III 1000V Safety Rating | @Each by Wattmaster
Heavy-Duty Alligator Clip Test Leads are designed for reliable electrical testing, featuring a 91.4 cm length and 18 AWG double insulated wire for enhanced durability and safety. With nickel-plated iron clips and a CAT III 1000V safety rating, these leads are perfect for insulation resistance testing and general electrical applications, making them ideal for electricians and trained personnel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heavy-Duty Alligator Clip Test Leads | 91.4 cm Length | 18 AWG Double Insulated | CAT III 1000V Safety Rating | @Each by Wattmaster
Brand: Wattmaster
SKU: A-69381
Alternatively Known As: Alligator Clip Test Leads, Heavy Duty Test Leads, Banana Plug Test Leads, Electrical Test Leads
Technical Specifications
- Lead Length: 91.4 cm (36 inches)
- Wire Gauge: 18 AWG double insulated
- Connector Type: Banana plug
- Clip Material: Nickel-plated iron
- Housing Material: PVC
- Plug Material: Copper
- Safety Rating: CAT III 1000V / CAT IV 600V
- Weight: 119 g (4.2 oz)
- Lead Angle: 90 degrees
- Dimensions (H x L x W): 25mm x 914mm x 6mm
- Weight: 0.12 kg
Key Features
- Standard banana-type inputs compatible with most multimeters and clamp meters
- Heavy-duty alligator clips attach securely to wires and other conductors
- 90-degree angled leads for ease of use in tight spaces
- 18 AWG double insulated wire for durability and safety
- CAT III 1000V / CAT IV 600V safety rating
Professional Installation Requirements
- Use by qualified electricians or trained personnel is recommended to ensure safety and proper testing procedures.
Applications
- Insulation resistance testing
- General electrical testing with multimeters and clamp meters
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces waste by extending product life
- Double insulated wire enhances safety, reducing risk of electrical accidents
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Heavy-Duty Alligator Clip Test Leads 91.4 cm are available for immediate purchase, ideal for electrical testing and measurement applications.
