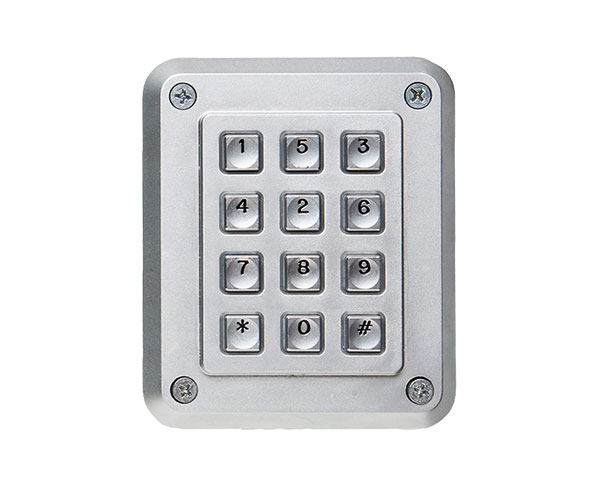

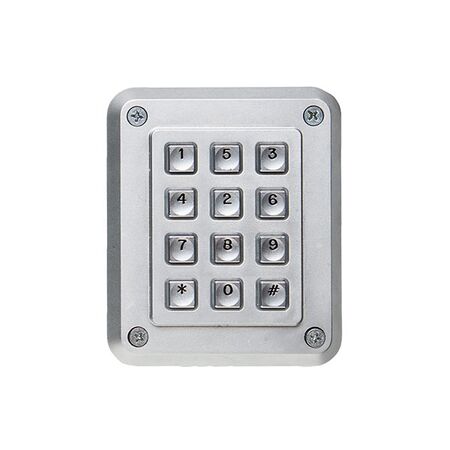

Heavy Duty Arming Station 4 LED Tamper Resistant Outdoor Tecom

BRAND: Ness
SKU: 120-105
$1,690.70 List price: $2,254.30
+ −
30 Days Return Electricians Unlock Trade Access
Tecom heavy duty arming station features 4 LED indicators and tamper resistance for outdoor use. Ideal for alarm systems in exposed locations.

Alternatively Known As: Tecom Heavy Duty Keypad, Challenger 4-LED Arming Station, Remote Arming Station, Outdoor Alarm Keypad

Technical Specifications
  • Supply Voltage: 10.5–13.8 VDC
  • Maximum Current Consumption: 70 mA
  • Open Collector Output: 1, maximum 50 mA
  • Request-to-Exit Input: Yes
  • Maximum Distance from Panel: 1.5 km
  • Maximum Devices per Panel Bus: 16
  • Communication: RS-485 LAN
  • Specified Cable: Belden 8723 or equivalent
  • Addressing: DIP switch
  • Operating Temperature: 0°C to 50°C
  • Construction: Robust metallic housing
  • LED Indicators: Access, alarm, ready and secure
  • Mounting: Flush mount keypad with separate PCB
  • Dimensions (H x L x W): 119mm x 100mm x 13mm
  • Weight: 0.45 kg
Key Features
  • Four LED indicators provide clear access and alarm status feedback
  • PIN entry for arming and disarming alarm areas or the complete system
  • Suitable for outdoor and exposed installations
  • Tamper-resistant, vandal-resistant metal construction
  • Compatible with Tecom Challenger control panels and intelligent access controllers
  • Supports remote installation up to 1.5 km from the Challenger panel
  • Separate keypad and PCB arrangement supports secure installation options
  • Includes an open collector output and request-to-exit input
Professional Installation Requirements
  • Installation, wiring, configuration and commissioning should be completed by a suitably qualified security installer familiar with Tecom Challenger systems. Install and commission the alarm system in accordance with AS/NZS 2201.1:2007 and applicable electrical wiring requirements.
Applications
  • Outdoor alarm system arming and disarming
  • Challenger access control door entry
  • External doors and gates
  • Remote buildings, utility areas and exposed access points
  • Commercial and industrial security installations
Standards & Compliance
  • Applicable system installation standard: AS/NZS 2201.1:2007, Intruder alarm systems — client premises design, installation, commissioning and maintenance
Environmental Benefits
  • Durable metallic construction can extend service life and reduce replacement waste
  • Separate keypad and PCB design may support component-level servicing rather than complete unit replacement
Warranty Information

Tecom Challenger hardware is covered by a 5-year warranty against defects, subject to the current manufacturer or authorised distributor warranty terms and conditions.

Available Now

Available through Tecom and authorised Australian security-system distributors, subject to distributor stock levels.
