Heavy Duty Cantilever Bracket | 120mm Long | Galvanised | Supports 41mm Channel by Ezy Strut
Heavy duty cantilever bracket with 120mm length and galvanised finish—ideal for industrial and commercial installations. Built for supporting 41mm wide channels, with robust protection against corrosion.
Sign in
Please login to continue to your account.
Product Name/Title: E1075-4 Cantilever Bracket HDG
Brand: Ezy Strut
SKU: E1075-4H
Alternatively Known As: Heavy Duty Cantilever Bracket, Galvanised Cantilever Arm
- Hole Diameter: 14mm
- Hole Spacing: 20.5mm from end

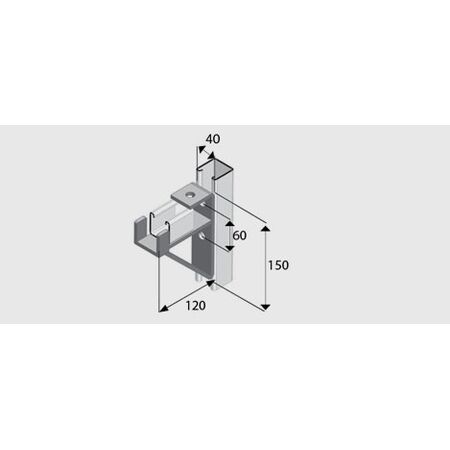

- Dimensions (H x L x W): 50mm x 120mm x 120mm
- Weight: 1.0 kg
- 120mm long braced cantilever arm
- Supports 41mm wide channel/strut
- Fully galvanised for heavy duty protection
- Available in stainless steel grade 316 for corrosive environments
- Professional installation is recommended to ensure proper support and safety.
- Industrial: Supporting cable trays and conduits
- Commercial: Use in various construction and electrical installations
- Complies with AS/NZS 1170 for structural design actions.
- Galvanised finish enhances longevity, reducing the need for replacements and waste.
1 year warranty against manufacturing defects.
The E1075-4 Cantilever Bracket HDG is available now for immediate purchase. Ideal for industrial and commercial applications.
